Back of Instrument Panel Components (X88/Z88 with D07)

Items
1: E35R Exterior Spot Lamp - Right (7X7) E35R Exterior Spot Lamp - Right
2: K74 Human Machine Interface Control Module (IO5 or IO6) K74 Human Machine Interface Control Module X1 K74 Human Machine Interface Control Module X2
3: T15 Navigation Antenna Signal Splitter (IO6 with UE1) T15 Navigation Antenna Signal Splitter X1 (IO6 with UE1)
4: P19B Speaker - Center Instrument Panel (UQH or UQS) P19B Speaker - Center Instrument Panel
5: P43 Collision Alert Indicators (UEU or UFL without UV6) P43 Collision Alert Indicators
6: E35L Exterior Spot Lamp - Left (7X6 or 7X7) E35L Exterior Spot Lamp - Left
7: K9 Body Control Module K9 Body Control Module X1 K9 Body Control Module X2
8: X84 Data Link Connector X84 Data Link Connector
9: E1AA Floor Accent Lamp - Left Front E1AA Floor Accent Lamp - Left Front
10: T1 Accessory DC/AC Power Inverter Module (KI4 or KI5) T1 Accessory DC/AC Power Inverter Module
11: A11 Radio A11 Radio X1 A11 Radio X2 A11 Radio X3 A11 Radio X4 A11 Radio X6 (U2M)A11 Radio X7 (IO3)
12: E1AB Floor Accent Lamp - Right Front E1AB Floor Accent Lamp - Right Front

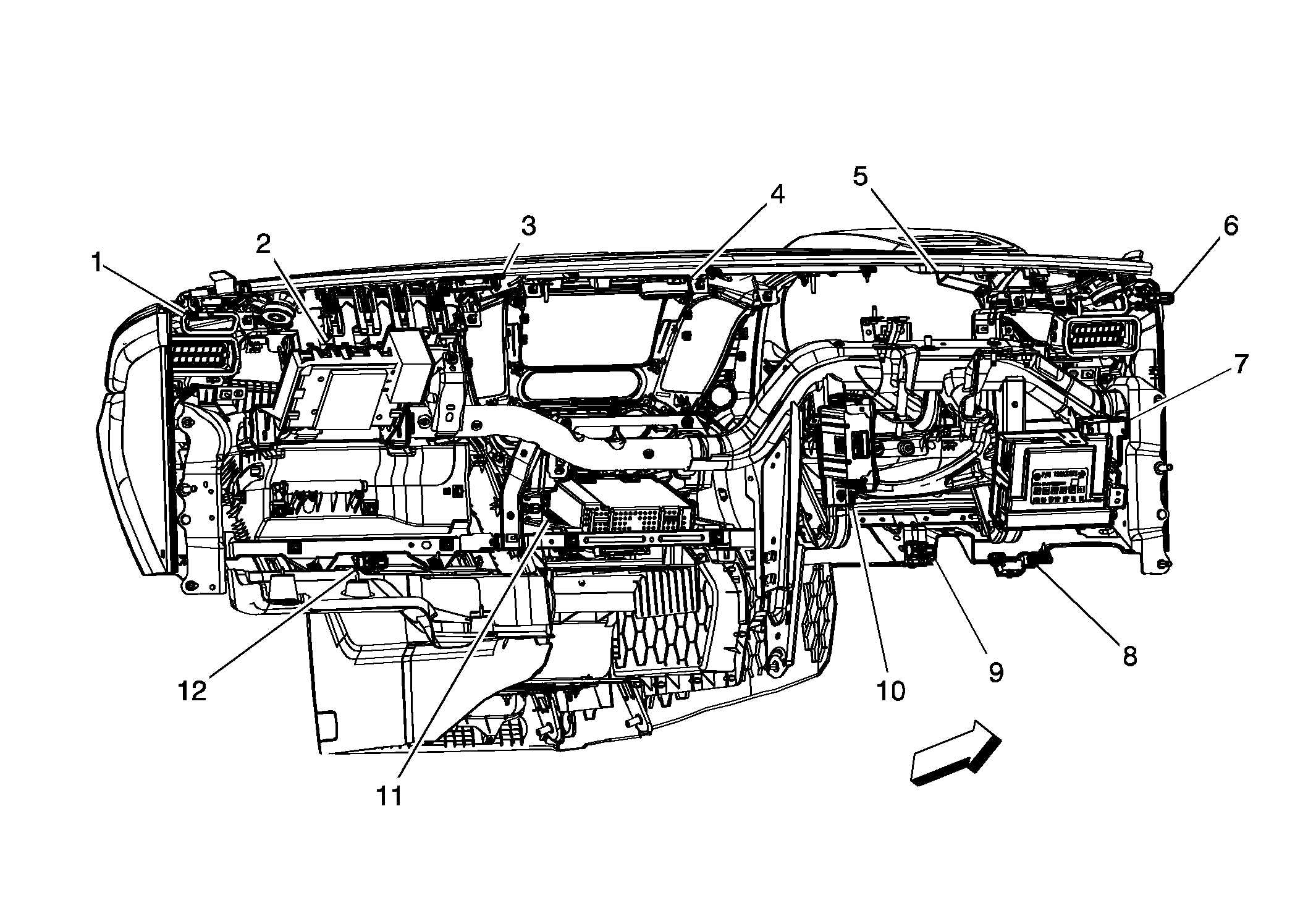

Fig 1: Back of Instrument Panel Components (X88/Z88 with D07)

Courtesy of GENERAL MOTORS COMPANY
