Front Side Door Window Inner Sealing Strip Replacement

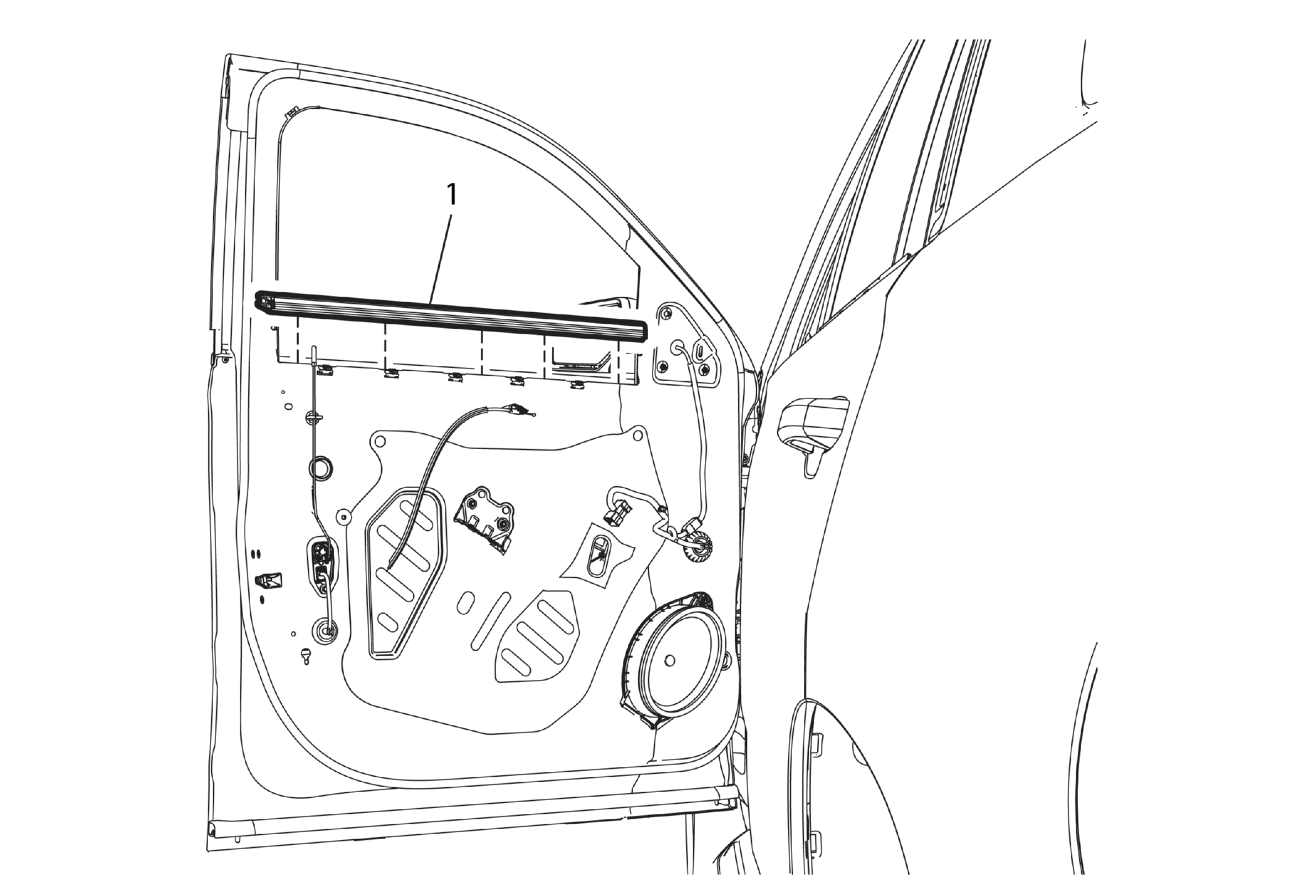

Fig 1: Front Side Door Window Inner Sealing Strip

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front side door trim. Refer to Front Side Door Trim Replacement .
1	Front Side Door Window Inner Sealing Strip Procedure Pull upward on the sealing strip to release it from the inside door flange. NOTE: Inspect the window for proper operation before installing the door trim.
