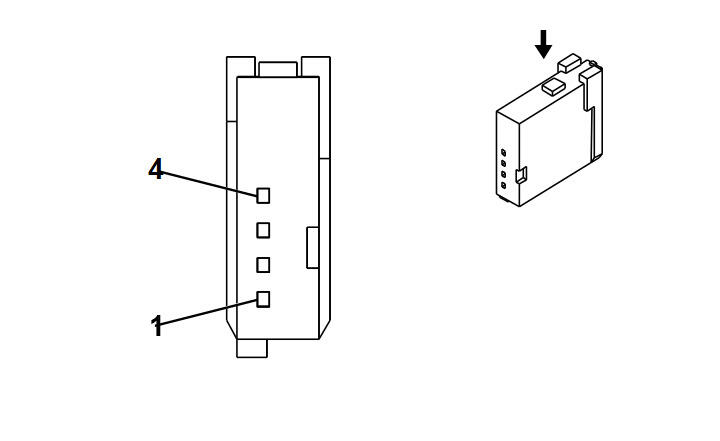

K18 Compass Module
|
|
Connector Part Information
- Harness Type: Headliner
- OEM Connector: 13577683
- Service Connector: 19300398
- Description: 4-Way F 0.64 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-64B (LT BU) |
Not Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
OG |
300 |
Run Ignition 3 Voltage |
I |
- |
| 2 |
0.35 |
BK |
850 |
Ground |
I |
- |
| 3 |
0.35 |
GY |
6135 |
Local Interconnect Network Serial Data Bus 4 |
I |
- |
| 4 |
- |
- |
- |
Not Occupied |
- |
- |
