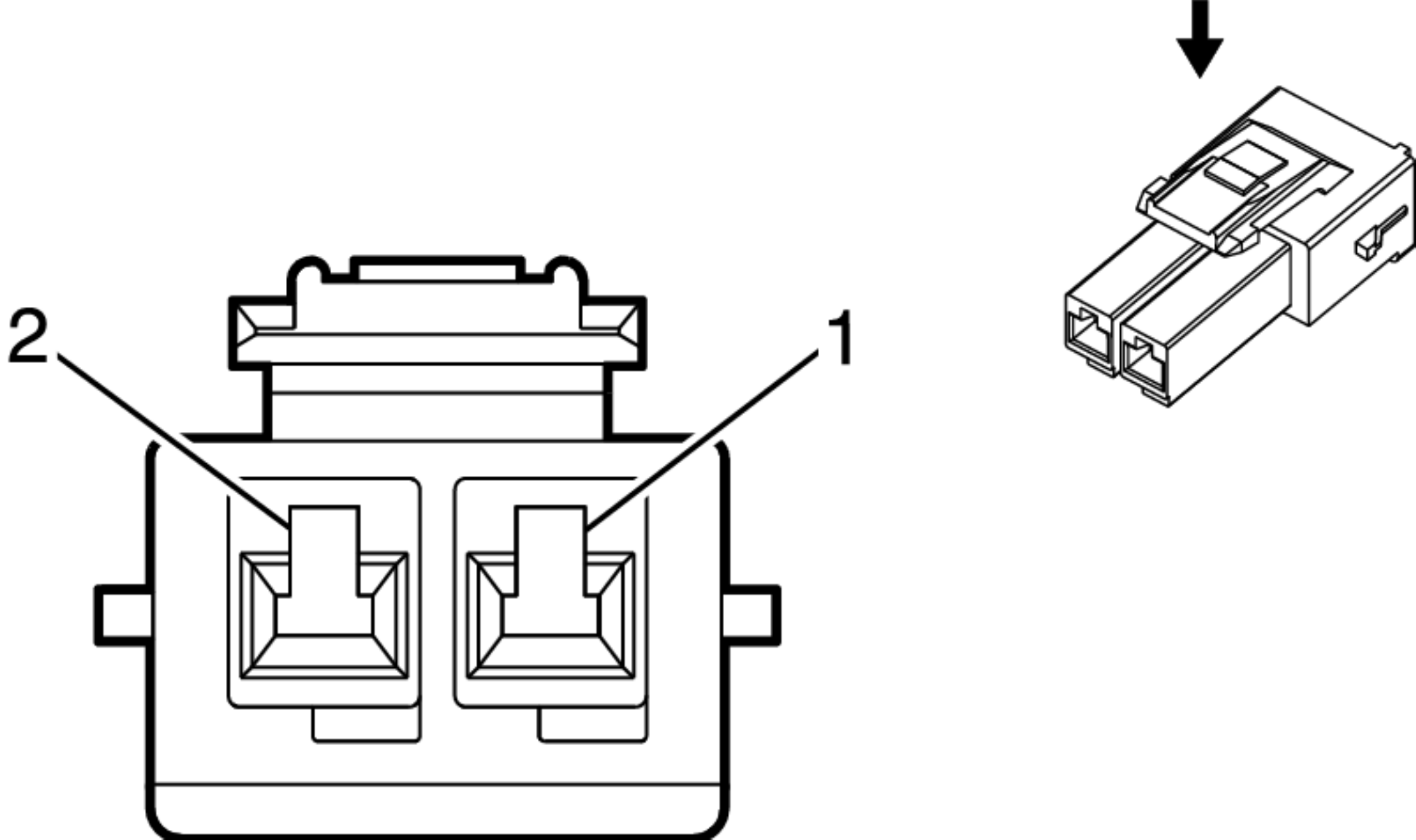

K32 Steering Wheel Heating Control Module
|
|
Connector Part Information
- Harness Type: Steering Column
- OEM Connector: 177898-1
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way M Power Double Lock Series (NA)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-65B (LT BU) |
Not Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
OG |
5883 |
Heated Steering Wheel Switch Signal |
I |
UVD |
| 2 |
0.35 |
PK |
5884 |
Heated Steering Wheel Switch LED Control |
I |
UVD |
