Rear Side Door Locking Rod Knob Replacement

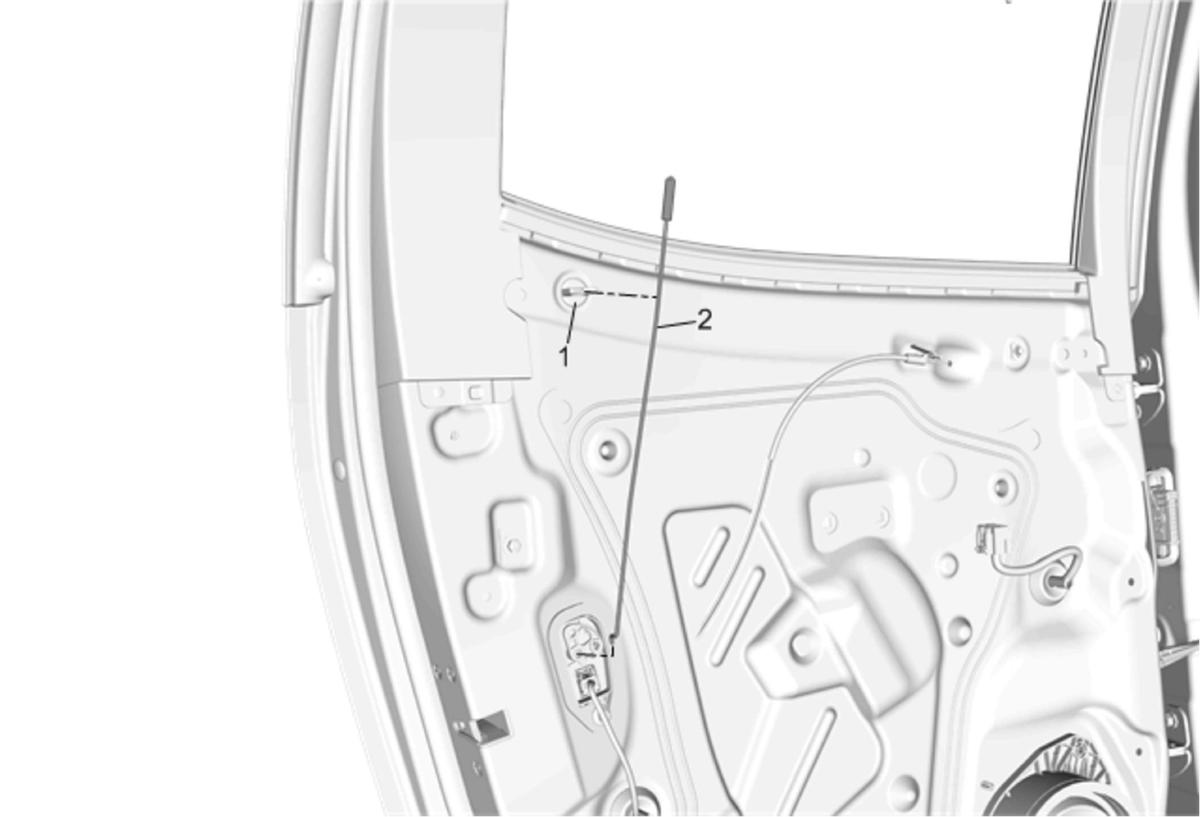

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear side door trim. Refer to Rear Side Door Trim Replacement (Crew Cab)Rear Side Door Trim Replacement (Extended Cab) . |
|
| 1 | Rear Side Door Locking Rod Clip Procedure Release the rear side door locking rod knob from the clip and move clip to the side. |
| 2 | Rear Side Door Locking Rod Knob Procedure Turn the locking rod knob downward and pull outward releasing it from the latch.
NOTE:
Ensure that the door lock system operates properly before installing the door trim. |
