Multimedia Player Interface and Audio Jacks (UYE)

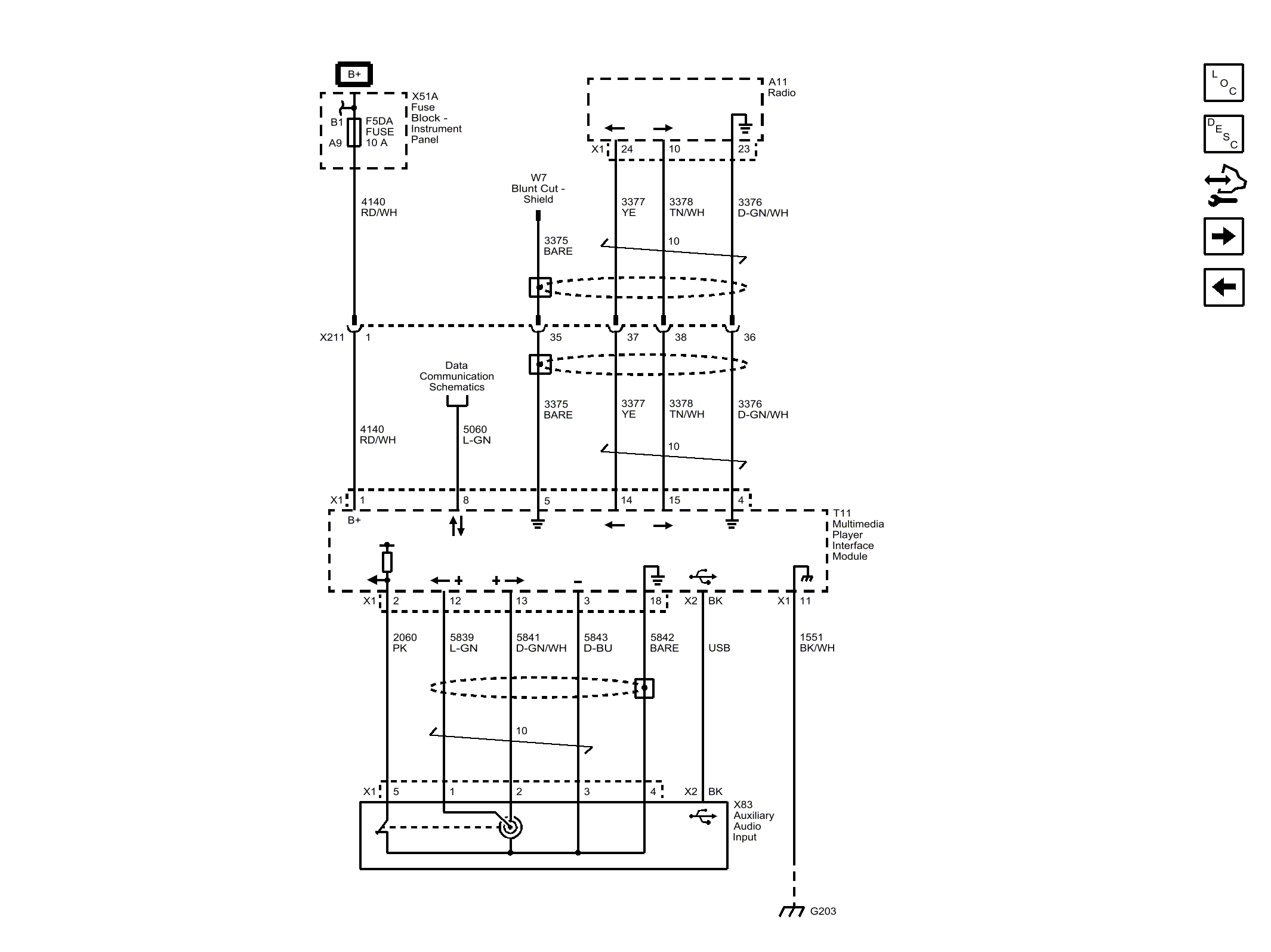

Fig 1: Multimedia Player Interface and Audio Jacks (UYE)
GM4069393Courtesy of GENERAL MOTORS COMPANY
