Radio Control Assembly Replacement (Chevrolet / GMC)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 GMC Yukon XL, 2015 GMC Yukon, 2015 Chevrolet Tahoe, 2015 Chevrolet Suburban, and 2015 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

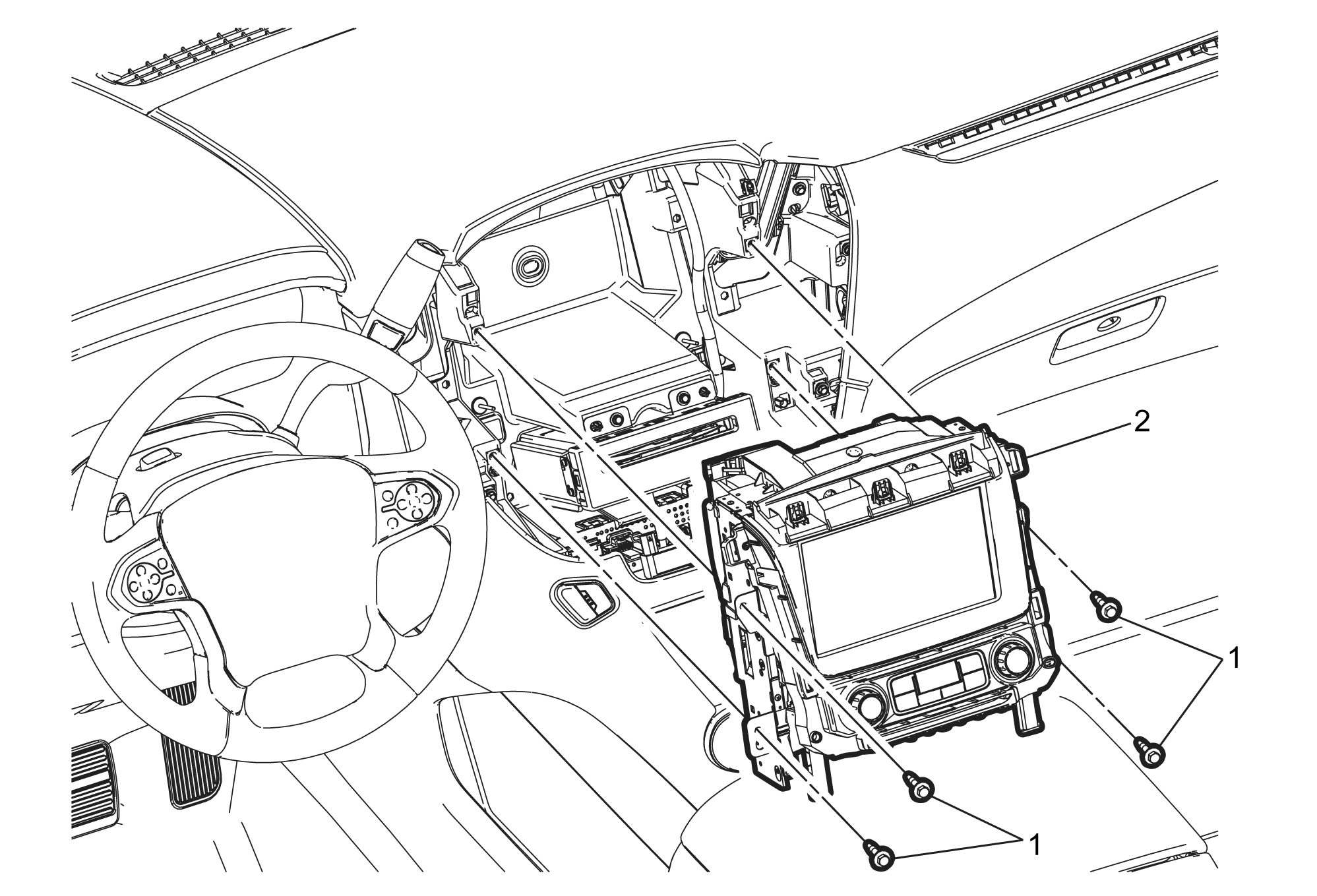

Fig 1: Radio Control Assembly (Chevrolet / GMC)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel center air outlet - left side. Refer to Instrument Panel Center Air Outlet Replacement - Left Side (Chevrolet / GMC) . Remove the instrument panel center air outlet - right side. Refer to Instrument Panel Center Air Outlet Replacement - Right Side (Chevrolet / GMC) .
1	Radio Control Fasteners (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Radio Control Assembly Procedure Disconnect the electrical connectors. Refer to Control Module References for programming and setup information.

Callout

Component Name

Preliminary Procedure

Remove the instrument panel center air outlet - left side. Refer to Instrument Panel Center Air Outlet Replacement - Left Side (Chevrolet / GMC) .
Remove the instrument panel center air outlet - right side. Refer to Instrument Panel Center Air Outlet Replacement - Right Side (Chevrolet / GMC) .

Radio Control Fasteners (Qty: 4)

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Radio Control Assembly

Procedure

Disconnect the electrical connectors.
Refer to Control Module References for programming and setup information.
