Collision Avoidance - Serial Data Camera, Module and Long Range Radar (UGN)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

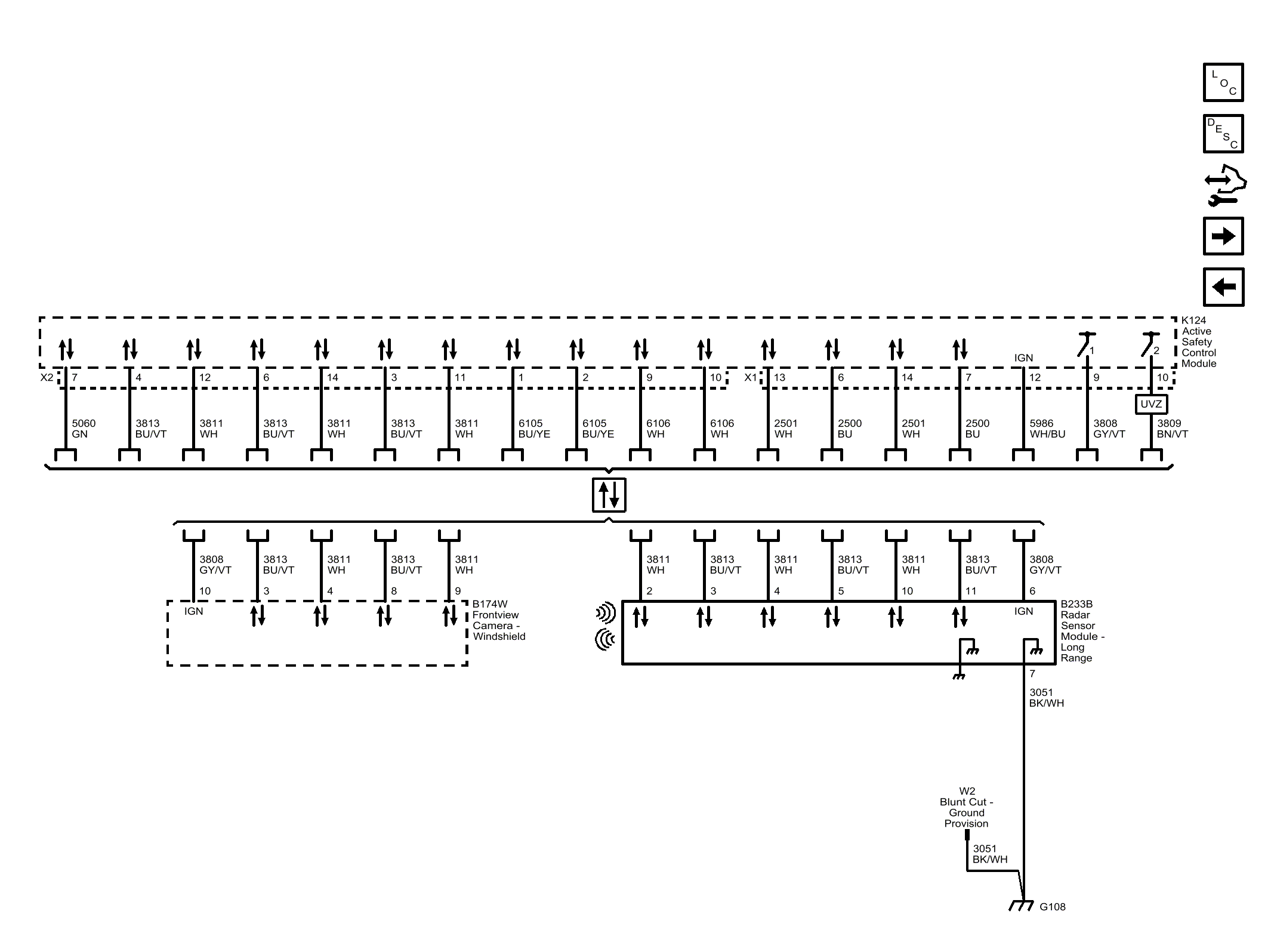

Fig 1: Collision Avoidance - Serial Data Camera, Module and Long Range Radar (UGN)
GM4492340Courtesy of GENERAL MOTORS COMPANY
