Pedestrian Impact Detection System (B3T)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

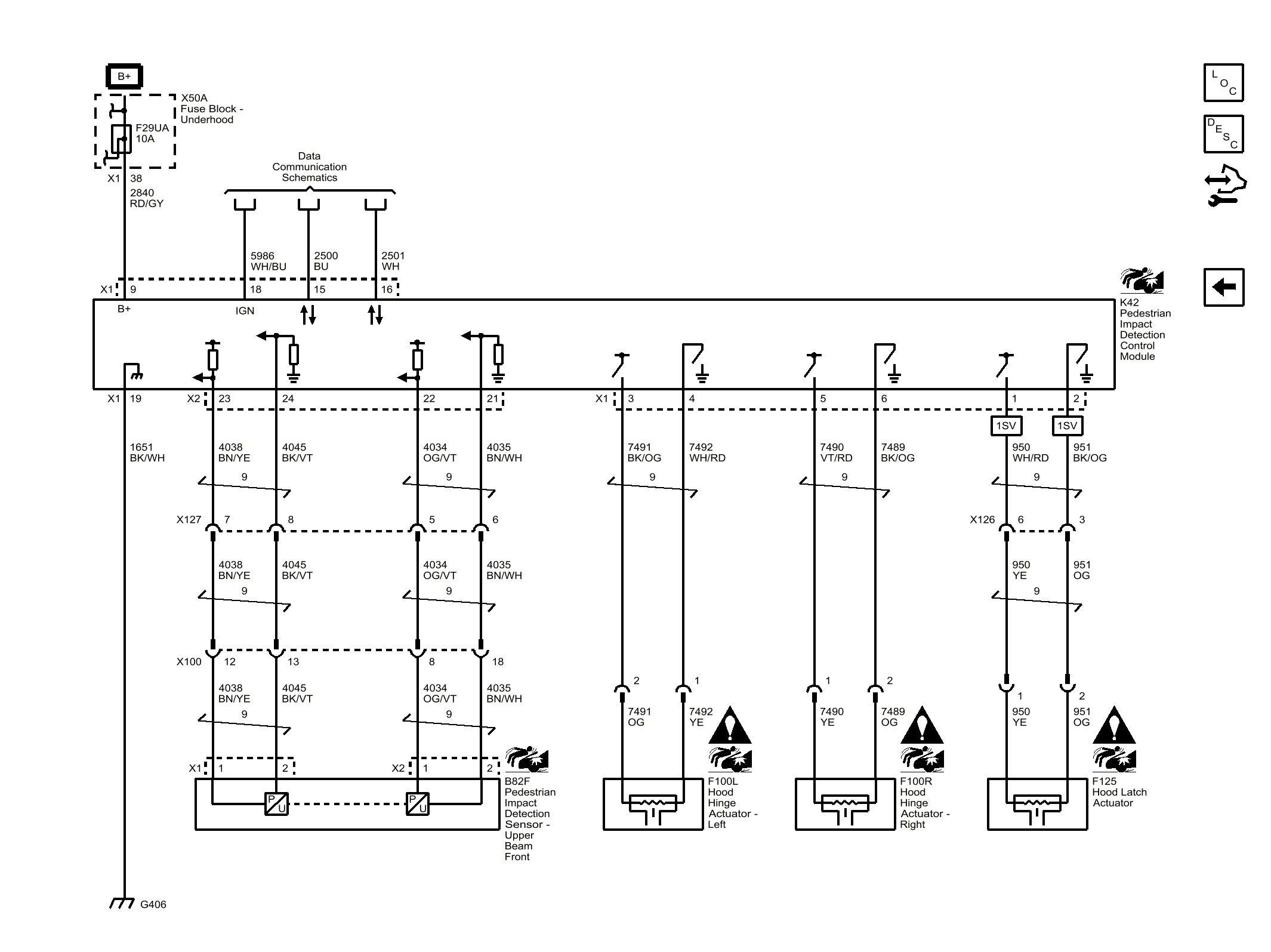

Fig 1: Pedestrian Impact Detection System (B3T)
GM4492355Courtesy of GENERAL MOTORS COMPANY
