Human Machine Interface Control Module Bracket Replacement

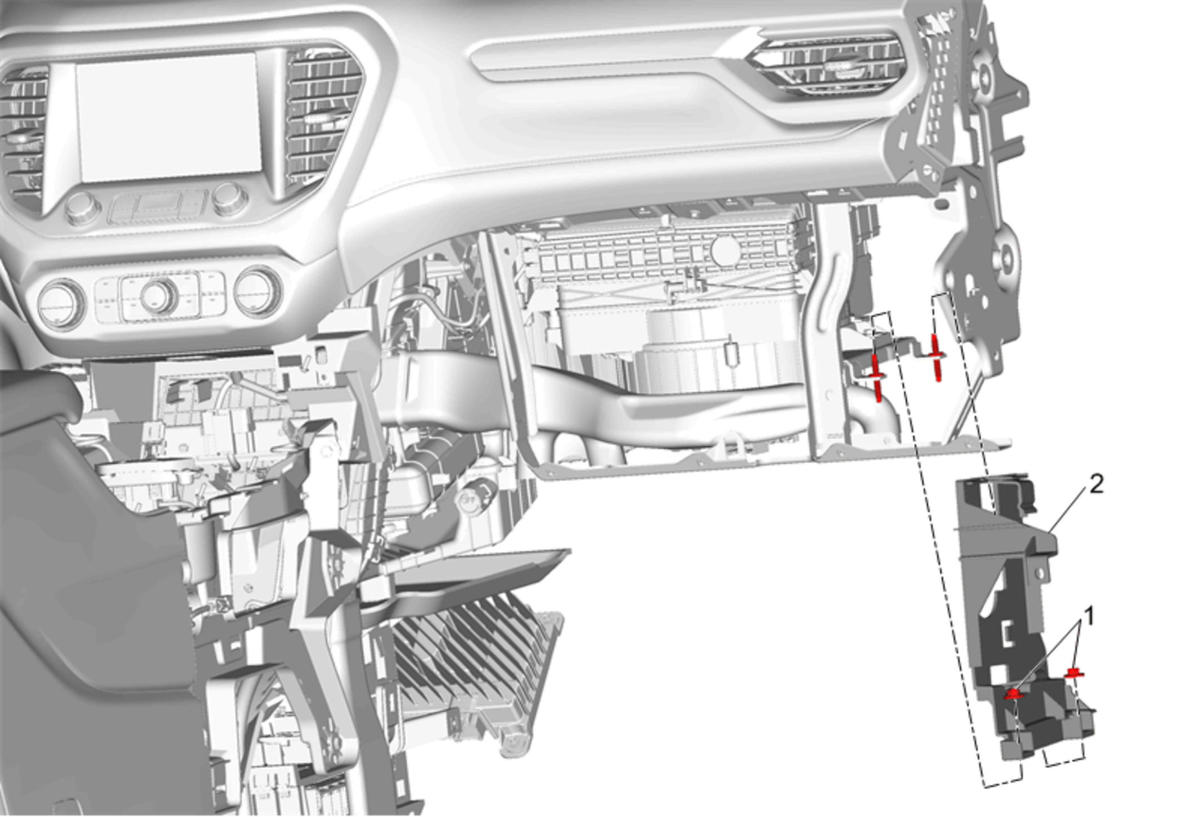

Fig 1: Human Machine Interface Control Module Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove Human Machine Interface Control Module. Refer to Human Machine Interface Control Module Replacement
1	Human Machine Interface Control Module Bracket Nut (Qty: 2) CAUTION: Refer to Fastener Caution Tighten  9 N.m (80 lb in)
2	Human Machine Interface Control Module Bracket
