Short Range Radar Sensor Replacement (Rear)

WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

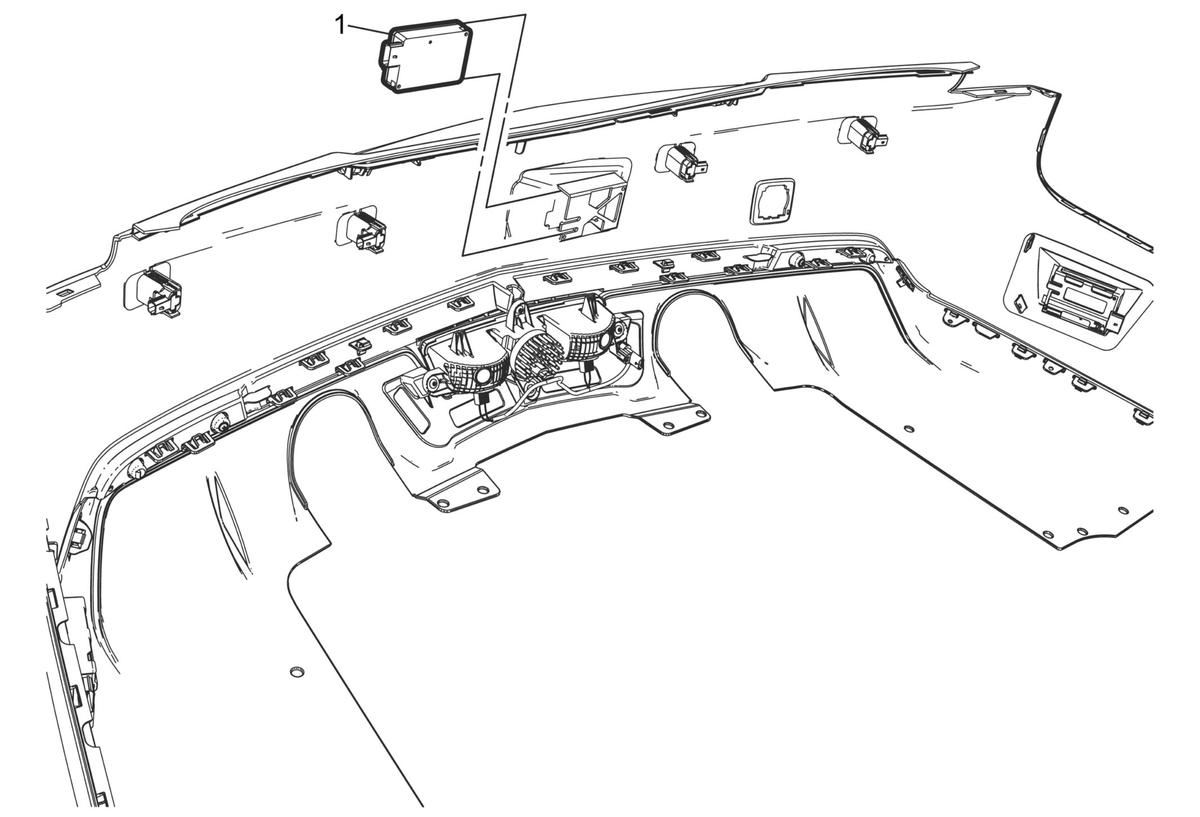

Fig 1: Short Range Radar Sensor (Rear)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear bumper fascia energy absorber. Refer to Rear Bumper Energy Absorber Replacement Rear Bumper Energy Absorber Replacement (Coupe) .
1	Short Range Radar Sensor Procedure Disconnect the electrical connector. Release the tab retainer and slide the sensor through the bracket opening to remove. For programming and set up, refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Remove the rear bumper fascia energy absorber. Refer to Rear Bumper Energy Absorber Replacement Rear Bumper Energy Absorber Replacement (Coupe) .

Short Range Radar Sensor

Procedure

Disconnect the electrical connector.
Release the tab retainer and slide the sensor through the bracket opening to remove.
For programming and set up, refer to Control Module References .
