Low Frequency Console Antenna Replacement (Except All Terrain)

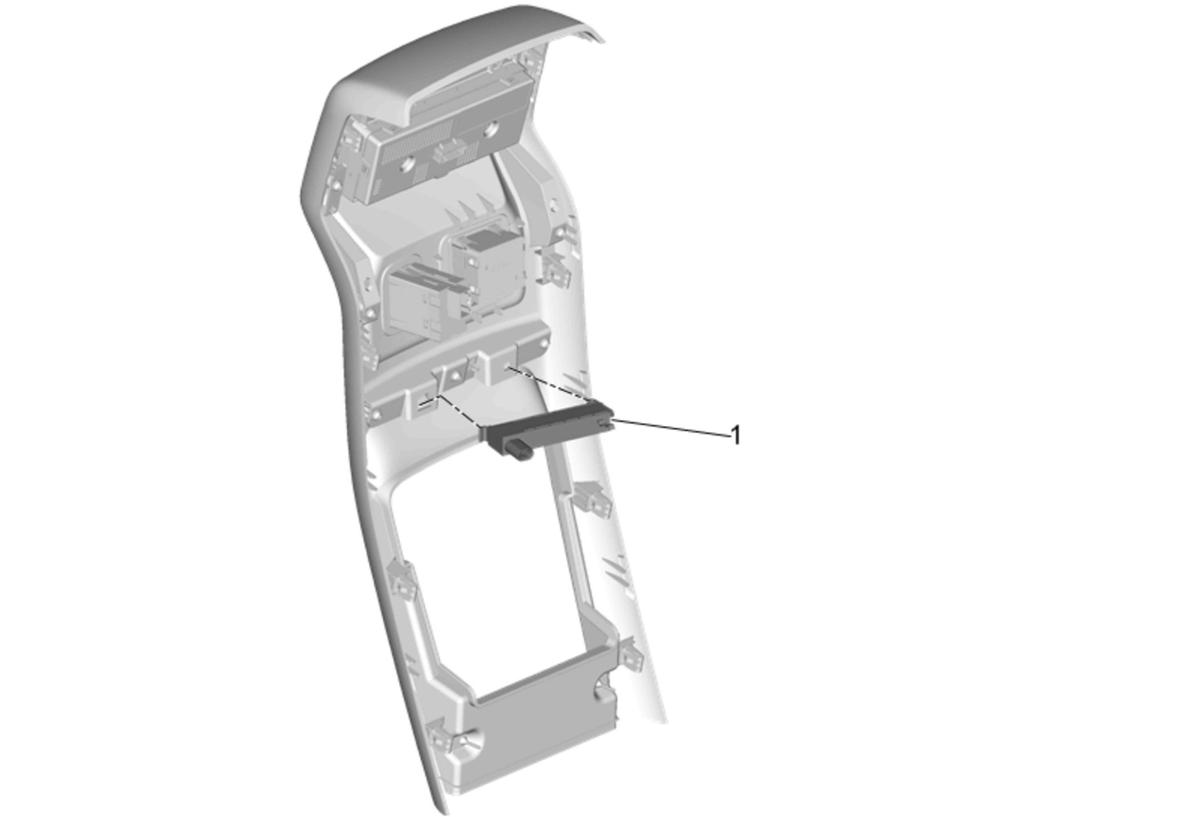

Fig 1: Low Frequency Console Antenna (Except All Terrain)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Front Floor Console Rear Trim Panel. Refer to Front Floor Console Rear Trim Panel Replacement
1	Low Frequency Console Antenna Procedure Disconnect the electrical connector. Release the retaining tab.

Callout

Component Name

Preliminary Procedure
Remove Front Floor Console Rear Trim Panel. Refer to Front Floor Console Rear Trim Panel Replacement

Low Frequency Console Antenna

Procedure
