Module Power, Ground, Serial Data, and Front Switch (TB5)

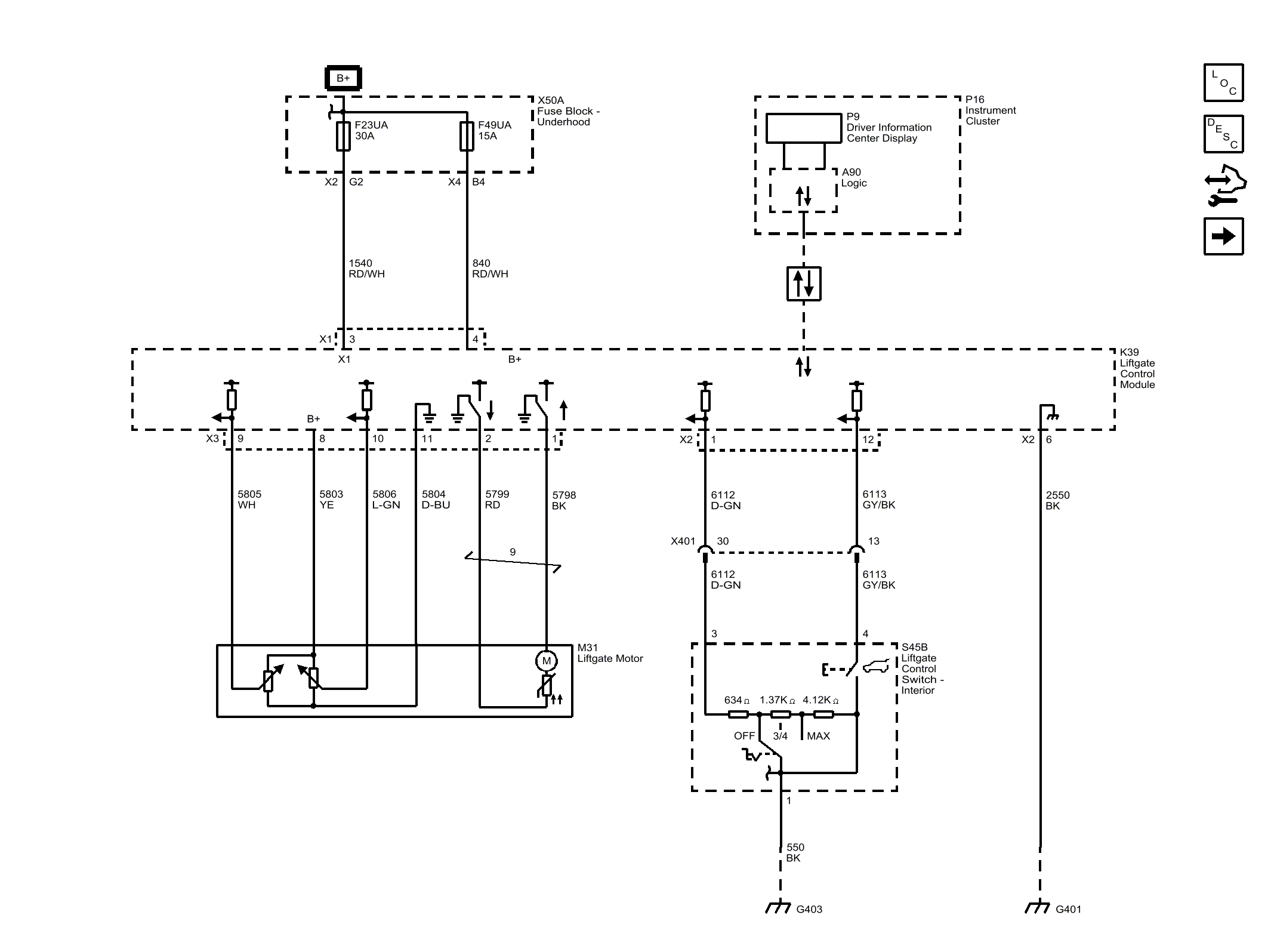

Fig 1: Module Power, Ground, Serial Data, and Front Switch (TB5)
GM4399948Courtesy of GENERAL MOTORS COMPANY
