Steering Wheel Controls

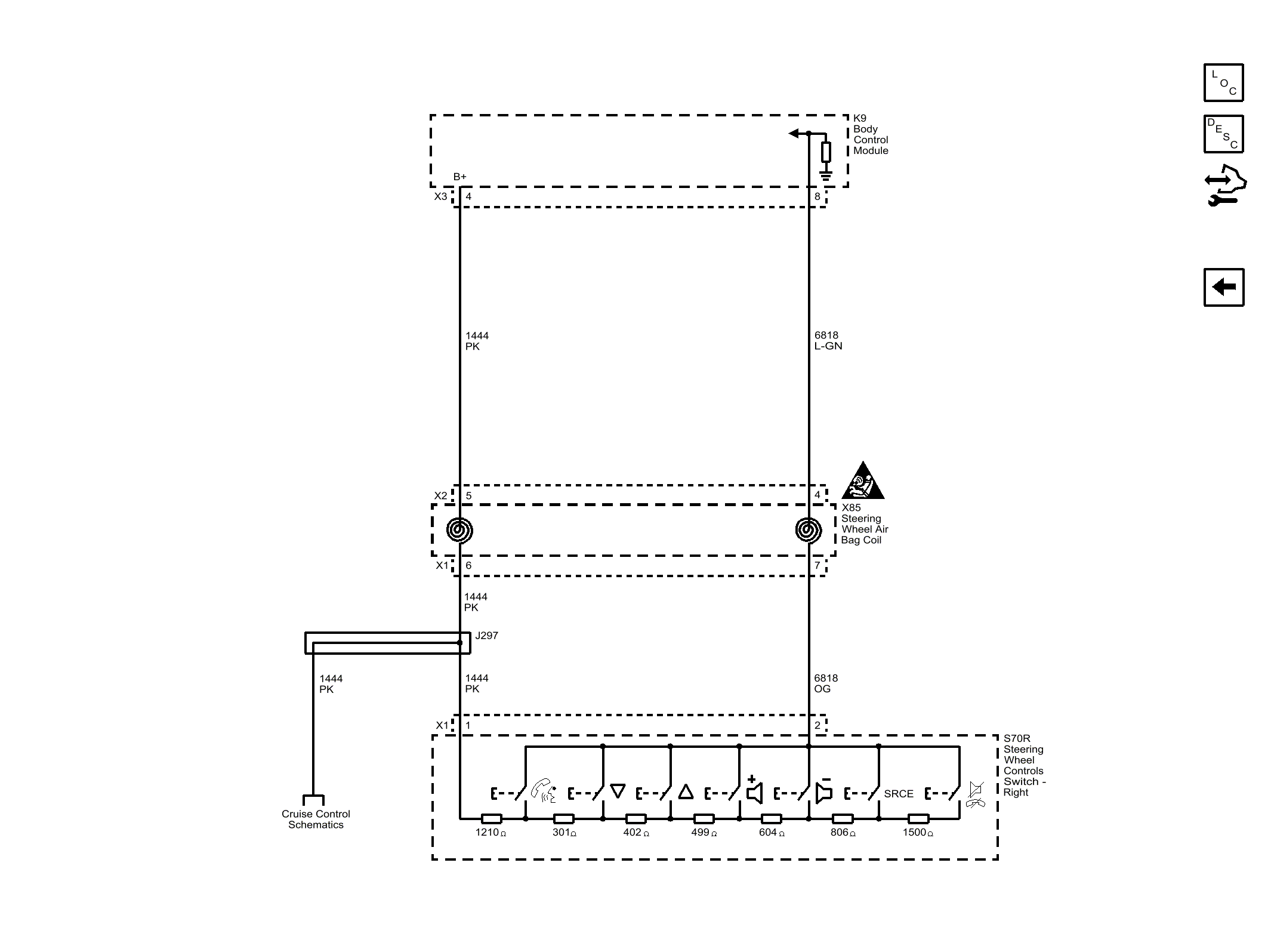

Fig 1: Steering Wheel Controls
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
