Passenger Compartment Components

Passenger Compartment Components

Items
1: F105R Roof Rail Air Bag - Right F105R Roof Rail Air Bag - Right
2: F105L Roof Rail Air Bag - Left F105L Roof Rail Air Bag - Left
3: K36 Inflatable Restraint Sensing and Diagnostic Module K36 Inflatable Restraint Sensing and Diagnostic Module X1K36 Inflatable Restraint Sensing and Diagnostic Module X2
4: B119 Multi-axis Acceleration Sensor B119 Multi-axis Acceleration Sensor

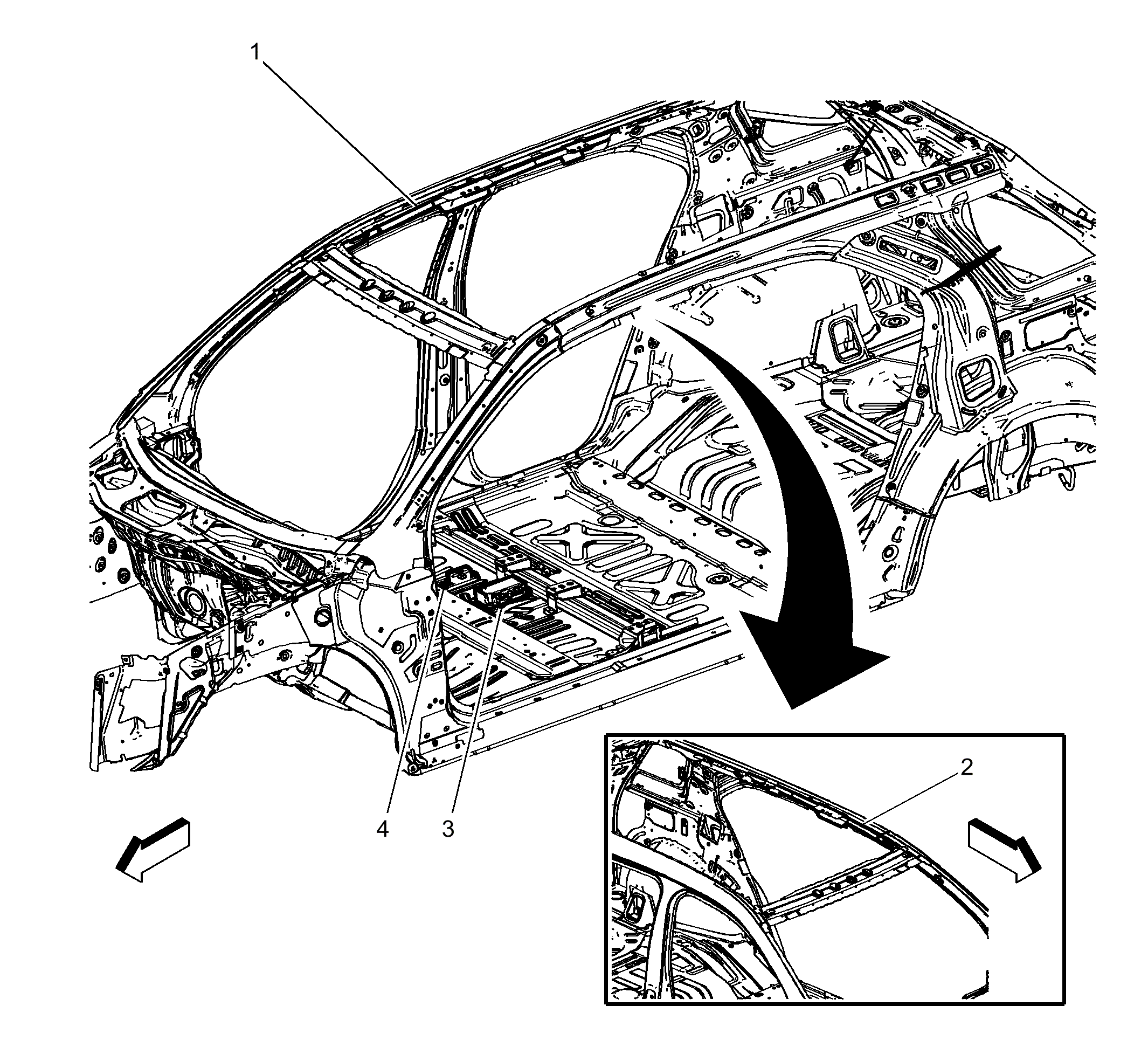

Fig 1: Passenger Compartment Components
GM2910256Courtesy of GENERAL MOTORS COMPANY
