Forward Collision and Lane Departure

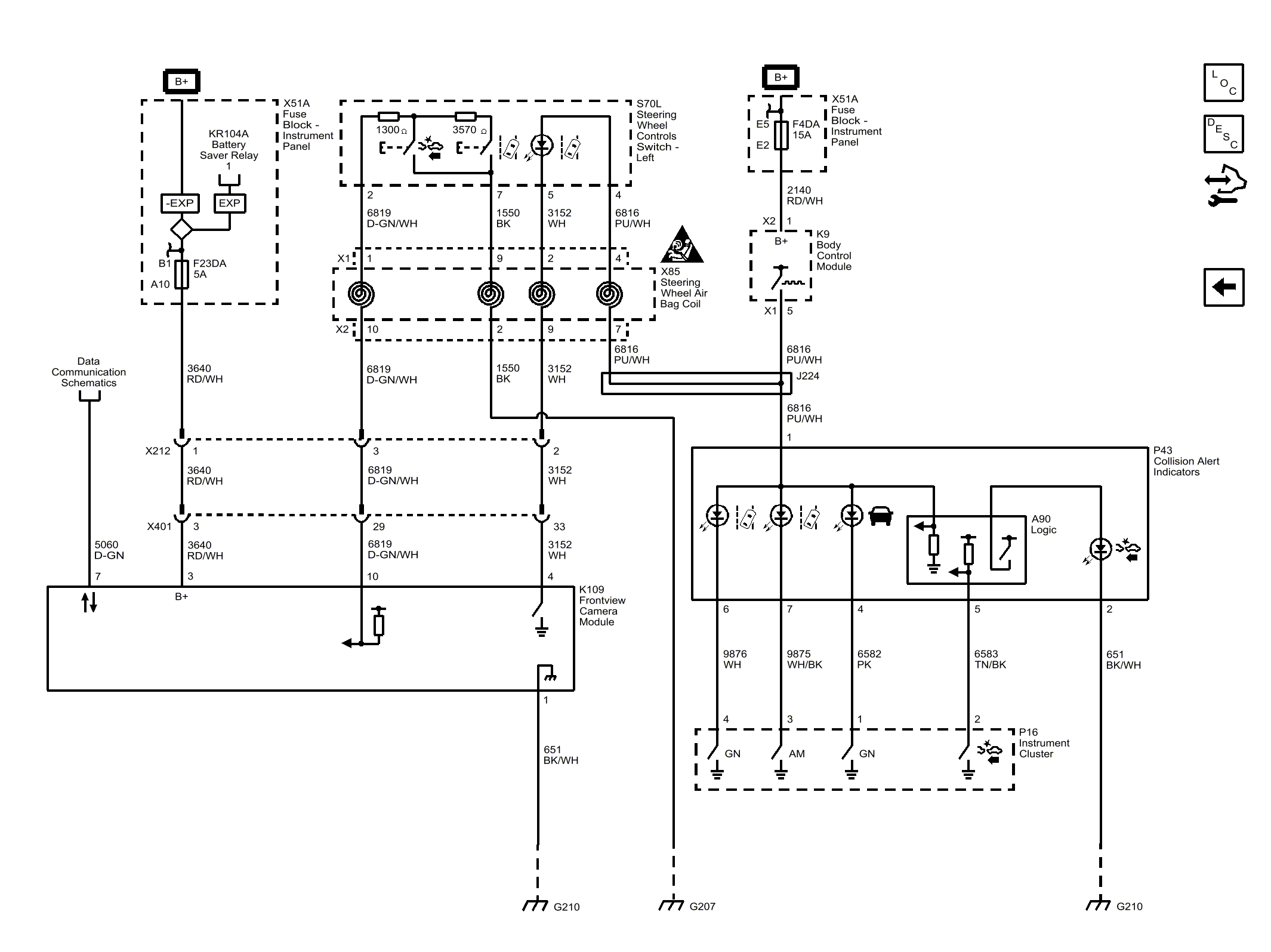

Fig 1: Forward Collision and Lane Departure
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
