Audio Jacks (without UYE)

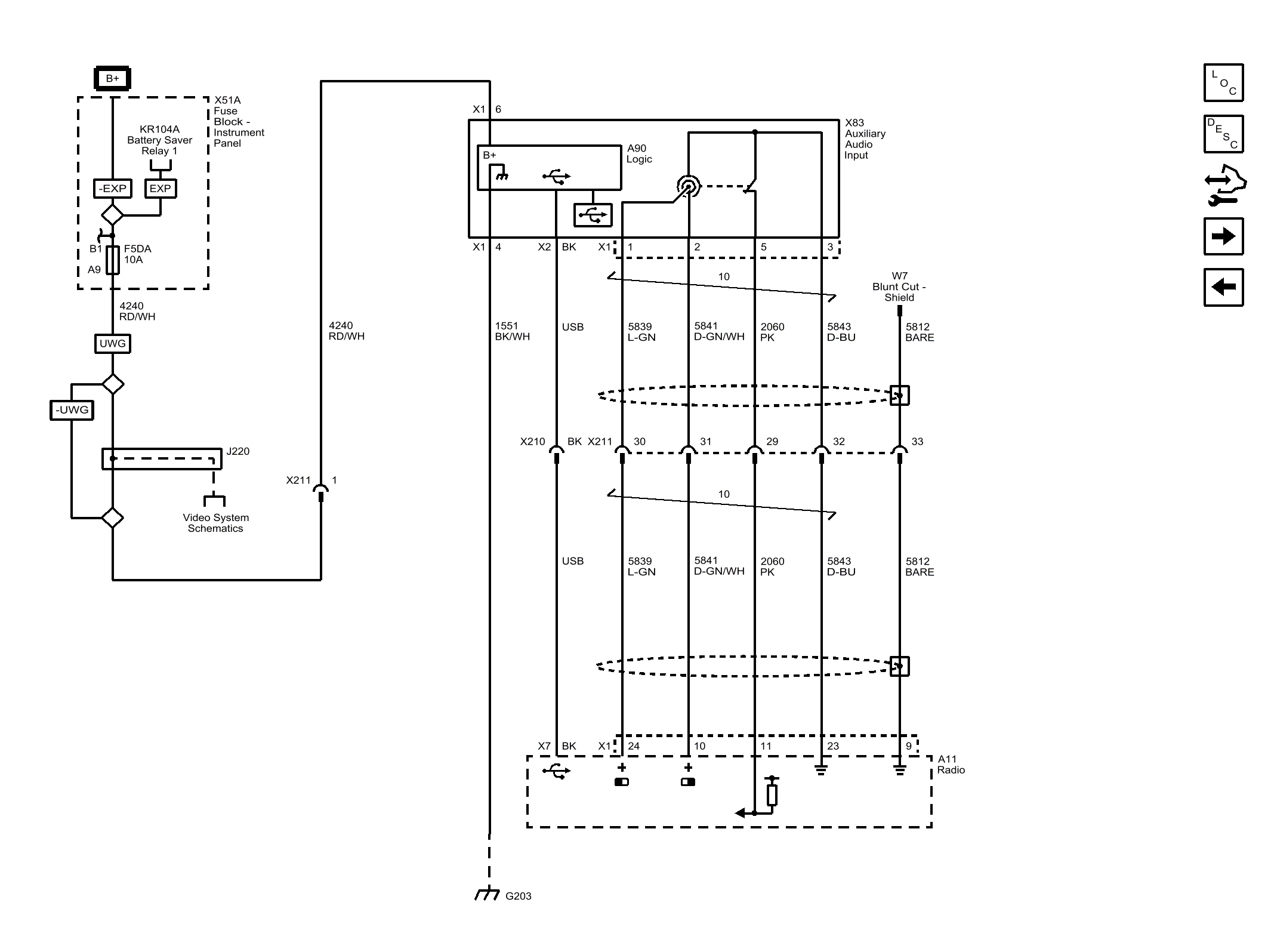

Fig 1: Audio Jacks (without UYE)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
