Video and Audio Inputs (UWG)

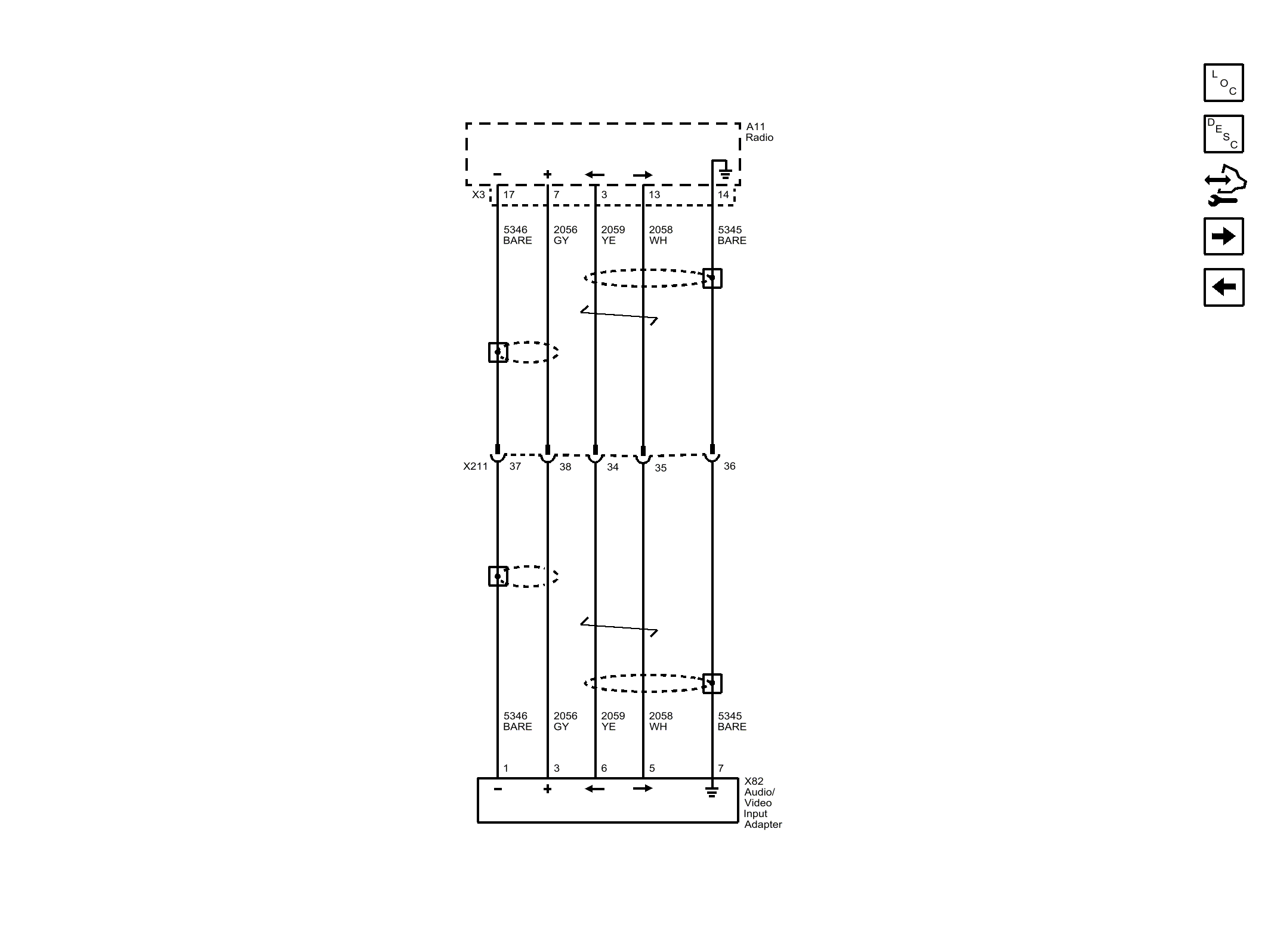

Fig 1: Video and Audio Inputs (UWG)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
