X51A Fuse Block - Instrument Panel Label

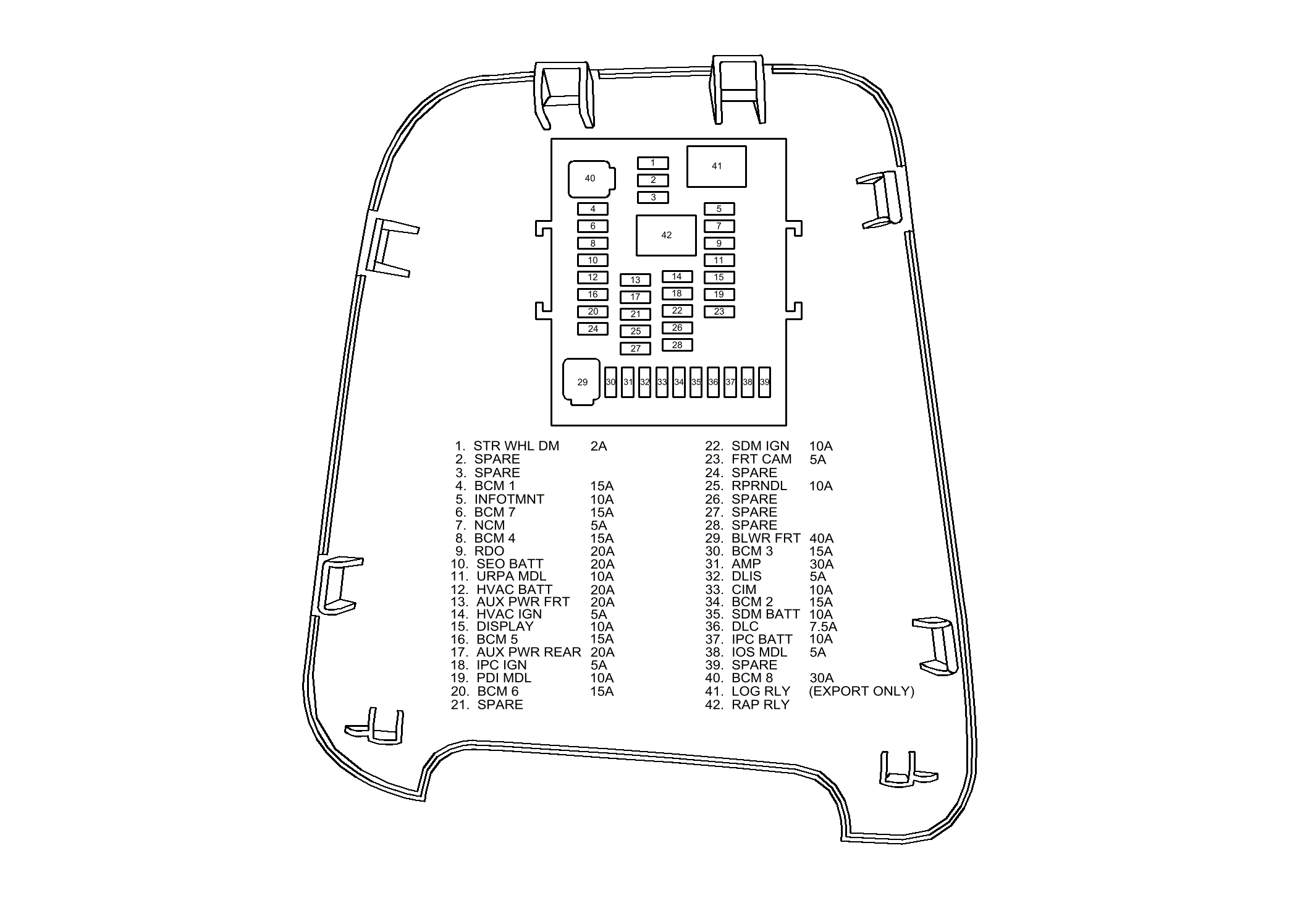

Fig 1: X51A Fuse Block - Instrument Panel Label
GM2834411Courtesy of GENERAL MOTORS COMPANY
X51A FUSE BLOCK - INSTRUMENT PANEL FUSE AND RELAY IDENTIFICATION LEGEND

No. Device Label Name Device Assigned Name Rating Description
Fuses
1 STR WHL DM Fuse F1DA 2A
  • S70L Steering Wheel Control Switch - Left
  • S70R Steering Wheel Control Switch - Right
2 SPARE F2DA -
  • Not Used
3 SPARE F3DA -
  • Not Used
4 BCM 1 Fuse F4DA 15A
  • K9 Body Control Module
5 INFOTMNT Fuse F5DA 10A
  • P22E Video Display - Driver Seatback (UWG)
  • P22F Video Display - Passenger Seatback (UWG)
6 BCM 7 Fuse F6DA 15A
  • K9 Body Control Module
7 NCM Fuse F7DA 5A
  • K108 Active Noise Cancellation Module (VQN)
8 BCM 4 Fuse F8DA 15A
  • K9 Body Control Module
9 RDO Fuse F9DA 20A
  • A11 Radio
10 SPARE F10DA -
  • Not Used
11 URPA MDL Fuse F11DA 10A
  • K41R Rear parking Assist Control Module (UD7)
12 HVAC BATT Fuse F12DA 20A
  • K33 HVAC Control Module
13 AUX PWR FRT Fuse F13DA 20A
  • X80G Accessory Power Receptacle - Instrument Panel
14 HVAC IGN Fuse F14DA 5A
  • K33 HVAC Control Module
15 DSPLY Fuse F15DA 10A
  • P17 Info Display Module
  • A20 Radio/HVAC Controls
16 BCM 5 Fuse F16DA 15A
  • K9 Body Control Module
17 AUX PWR REAR Fuse F17DA 20A
  • X80A Accessory Power Receptacle - Center Console 1
  • X80B Accessory Power Receptacle - Center Console 2
18 IPC IGN Fuse F18DA 5A
  • P16 Instrument Cluster
19 UGDO Fuse F19DA 10A
  • S25 Garage Door Opener
20 BCM 6 Fuse F20DA 15A
  • K9 Body Control Module
21 SPARE F21DA -
  • Not Used
22 SDM IGN Fuse F22DA 10A
  • K36 Inflatable Restraint Sensing and Diagnostic Module
23 FRT CAM F23DA 5A
  • K109 Front View Camera Module
24 SPARE F24DA -
  • Not Used
25 RPRNDL Fuse F25DA 10A
  • P2 Transmission Shift Lever Position Indicator
26 SPARE F26DA -
  • Not Used
27 SPARE F27DA -
  • Not Used
28 SPARE F28DA -
  • Not Used
29 BLWR FRT Fuse F29DA 40A
  • K8 Blower Motor Control Module
30 BCM 3 Fuse F30DA 15A
  • K9 Body Control Module
31 AMP Fuse F31DA 30A
  • T3 Audio Amplifier
32 DLIS Fuse F32DA 5A
  • S39 Ignition Switch
33 CIM Fuse F33DA 10A
  • K73 Telematics Communication Interface Control Module (UE1)
34 BCM 2 Fuse F34DA 15A
  • K9 Body Control Module
35 SDM BATT Fuse F35DA 10A
  • K39 Inflatable Restraint Sensing and Diagnostic Module
36 DLC Fuse F36DA 7.5A
  • X84 Data Link Connector
37 IPC BATT Fuse F37DA 10A
  • P16 Instrument Cluster
38 IOS MDL Fuse F38DA 5A
  • B60 Passenger Presence Sensor
39 SPARE F39DA -
  • Not Used
40 BCM 8 Fuse F40DA 30A
  • K9 Body Control Module
Relays
41 LOG RLY KR104A Battery Saver Relay 1 -
  • F5DA
  • F7DA
  • F9DA
  • F11DA
  • F15DA
  • F19DA (EXP)
42 RAP RLY KR76 Retained Accessory Power Relay -
  • F13DA
  • F17DA
  • F21DA
  • F25DA
X51A FUSE BLOCK-- INSTRUMENT PANEL FUSE AND RELAY IDENTIFICATION LEGEND (EXP)

No. Device Label Name Device Assigned Name Rating Description
Fuses
1 STR WHL DM Fuse F1DA 2A
  • S70L Steering Wheel Control Switch - Left
  • S70R Steering Wheel Control Switch - Right
2 SPARE F2DA -
  • Not Used
3 SPARE F3DA -
  • Not Used
4 BCM 1 Fuse F4DA 15A
  • K9 Body Control Module
5 INFOTMNT Fuse F5DA 10A
  • P22E Video Display - Driver Seatback (UWG)
  • P22F Video Display - Passenger Seatback (UWG)
6 BCM 7 Fuse F6DA 15A
  • K9 Body Control Module
7 NCM Fuse F7DA 5A
  • K108 Active Noise Cancellation Module (VQN)
8 BCM 4 Fuse F8DA 15A
  • K9 Body Control Module
9 RDO Fuse F9DA 20A
  • A11 Radio
10 SPARE F10DA -
  • Not Used
11 URPA MDL Fuse F11DA 10A
  • K41R Rear parking Assist Control Module (UD7)
12 HVAC BATT Fuse F12DA 20A
  • K33 HVAC Control Module
13 AUX PWR FRT Fuse F13DA 20A
  • X80G Accessory Power Receptacle - Instrument Panel
14 HVAC IGN Fuse F14DA 5A
  • K33 HVAC Control Module
15 DSPLY Fuse F15DA 10A
  • P17 Info Display Module
  • A20 Radio/HVAC Controls
16 BCM 5 Fuse F16DA 15A
  • K9 Body Control Module
17 AUX PWR REAR Fuse F17DA 20A
  • X80A Accessory Power Receptacle - Center Console 1
  • X80B Accessory Power Receptacle - Center Console 2
18 IPC IGN Fuse F18DA 5A
  • P16 Instrument Cluster
19 UGDO Fuse F19DA 10A
  • S25 Garage Door Opener
20 BCM 6 Fuse F20DA 15A
  • K9 Body Control Module
21 SPARE F21DA -
  • Not Used
22 SDM IGN Fuse F22DA 10A
  • K36 Inflatable Restraint Sensing and Diagnostic Module
23 FRT CAM F23DA 5A
  • K109 Front View Camera Module
24 SPARE F24DA -
  • Not Used
25 RPRNDL Fuse F25DA 10A
  • P2 Transmission Shift Lever Position Indicator
26 SPARE F26DA -
  • Not Used
27 SPARE F27DA -
  • Not Used
28 SPARE F28DA -
  • Not Used
29 BLWR FRT Fuse F29DA 40A
  • K8 Blower Motor Control Module
30 BCM 3 Fuse F30DA 15A
  • K9 Body Control Module
31 AMP Fuse F31DA 30A
  • T3 Audio Amplifier
32 DLIS Fuse F32DA 5A
  • S39 Ignition Switch
33 CIM Fuse F33DA 10A
  • K73 Telematics Communication Interface Control Module (UE1)
34 BCM 2 Fuse F34DA 15A
  • K9 Body Control Module
35 SDM BATT Fuse F35DA 10A
  • K39 Inflatable Restraint Sensing and Diagnostic Module
36 DLC Fuse F36DA 7.5A
  • X84 Data Link Connector
37 IPC BATT Fuse F37DA 10A
  • P16 Instrument Cluster
38 IOS MDL Fuse F38DA 5A
  • B60 Passenger Presence Sensor
39 SPARE F39DA -
  • Not Used
40 BCM 8 Fuse F40DA 30A
  • K9 Body Control Module
Relays
41 LOG RLY KR104A Battery Saver Relay 1 -
  • F5DA
  • F7DA
  • F9DA
  • F11DA
  • F15DA
  • F19DA (EXP)
42 RAP RLY KR76 Retained Accessory Power Relay -
  • F13DA
  • F17DA
  • F21DA
  • F25DA
