Collision Avodance - Serial Data Short Range Radars (UVZ)

WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

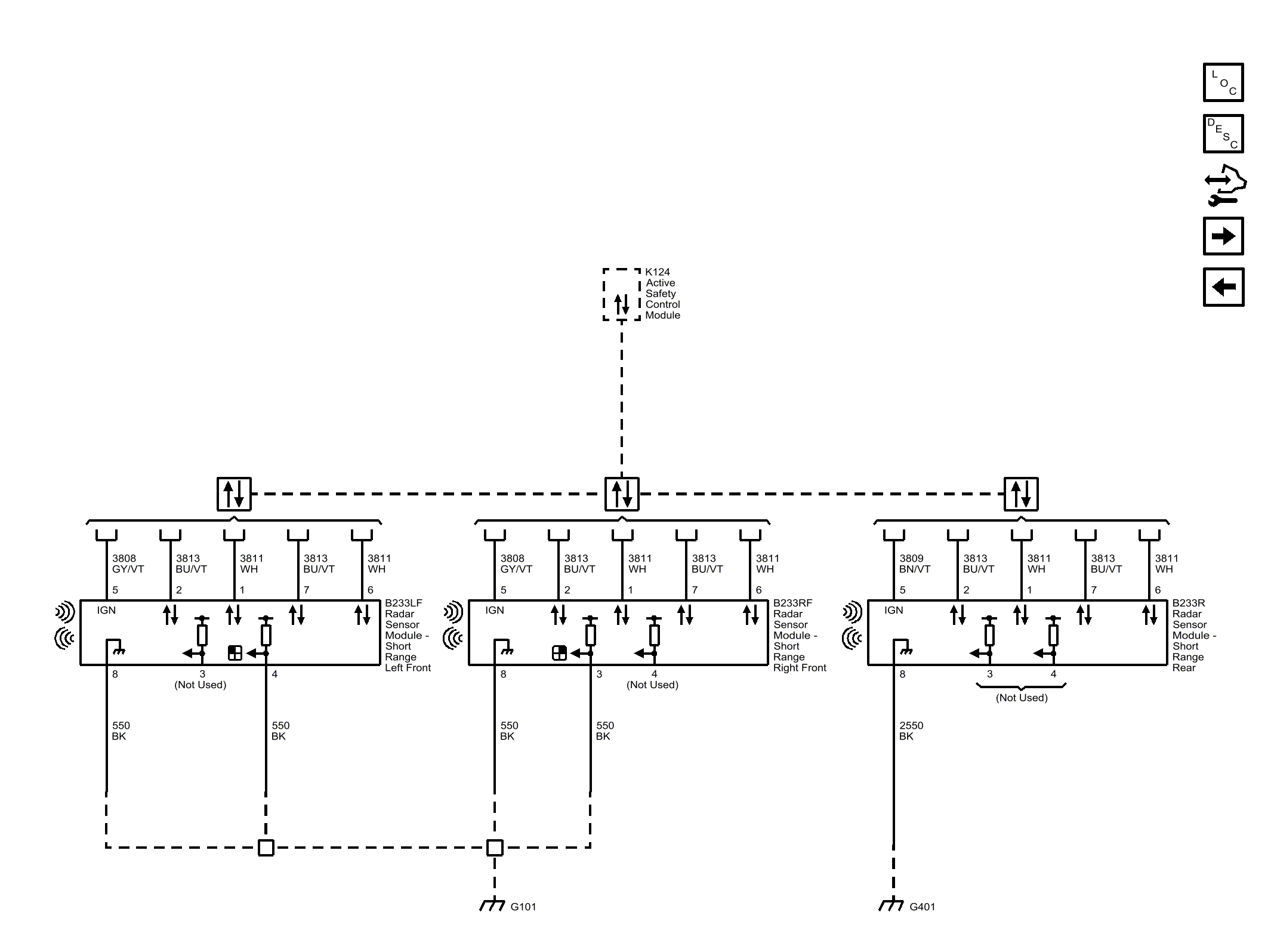

Fig 1: Collision Avodance - Serial Data Short Range Radars (UVZ)
GM4054966Courtesy of GENERAL MOTORS COMPANY
