Home
>>
GMC
>>
2018
>>
Acadia Denali, FWD
>>
Repair and Diagnosis
>>
Body & Frame
>>
Body, Cab Control Systems
>>
Vehicle Access System
>>
Schematic Wiring Diagrams
>>
Release Systems Wiring Schematics
>>
Release Systems Schematics
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

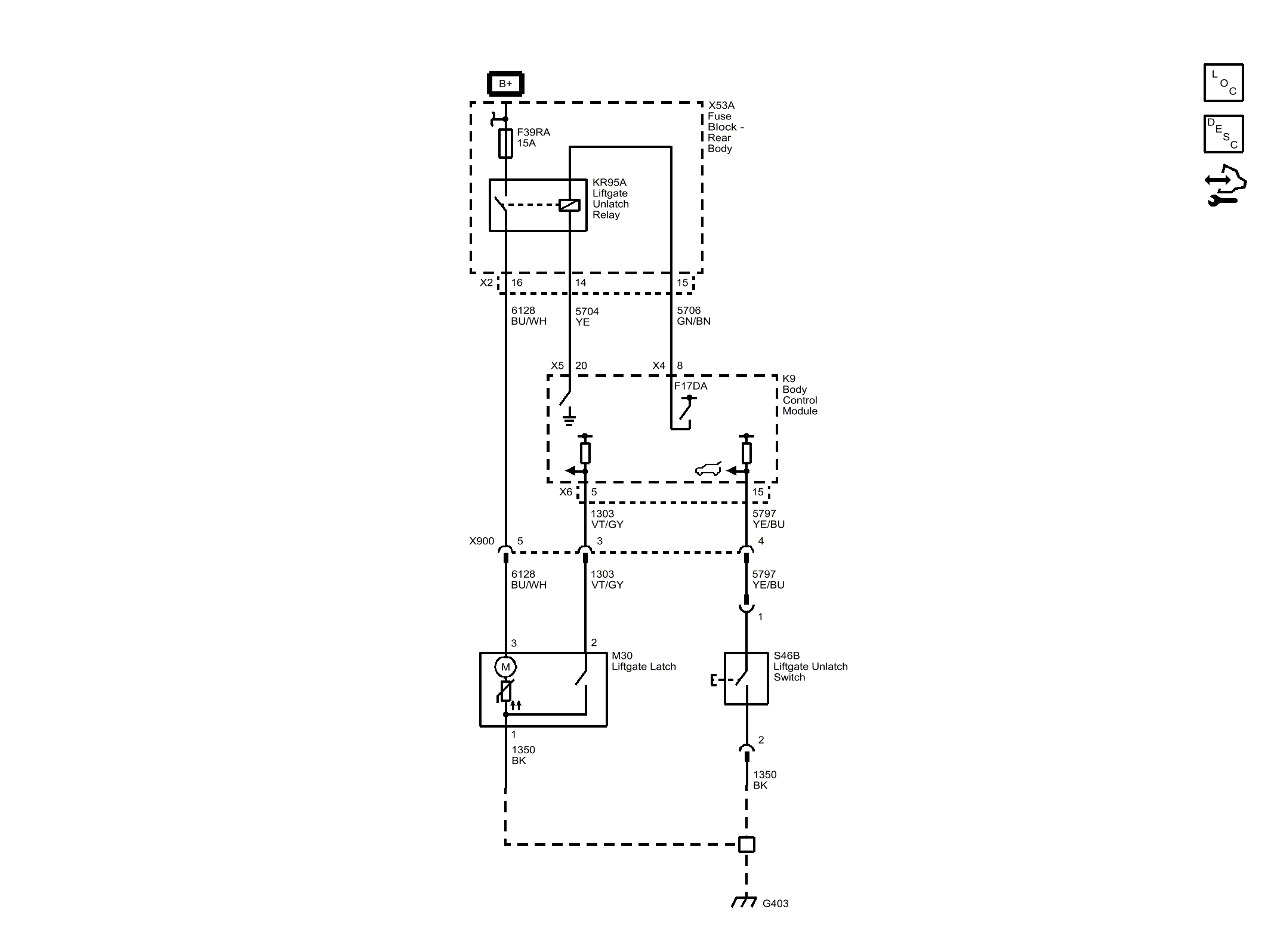

Release Systems Schematics
