Communication Interface Module Battery Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

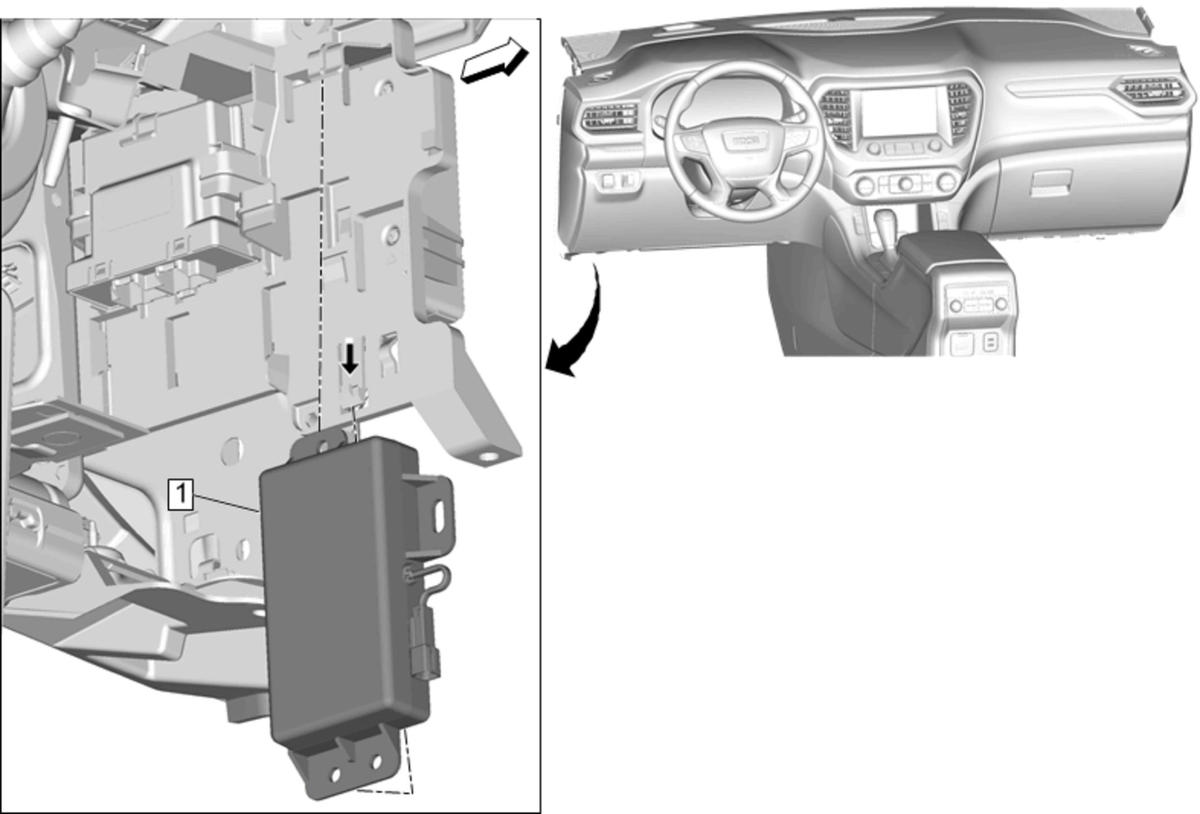

Fig 1: Communication Interface Module Battery

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Instrument Panel Insulator - Left Side. Refer to Instrument Panel Insulator Replacement - Left Side
1	Communication Interface Module Battery Procedure Disconnect the electrical connector. Release the retaining tab.

Callout

Component Name

Preliminary Procedure
Remove Instrument Panel Insulator - Left Side. Refer to Instrument Panel Insulator Replacement - Left Side

Communication Interface Module Battery

Procedure

Disconnect the electrical connector.
Release the retaining tab.
