Radio Control Assembly Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

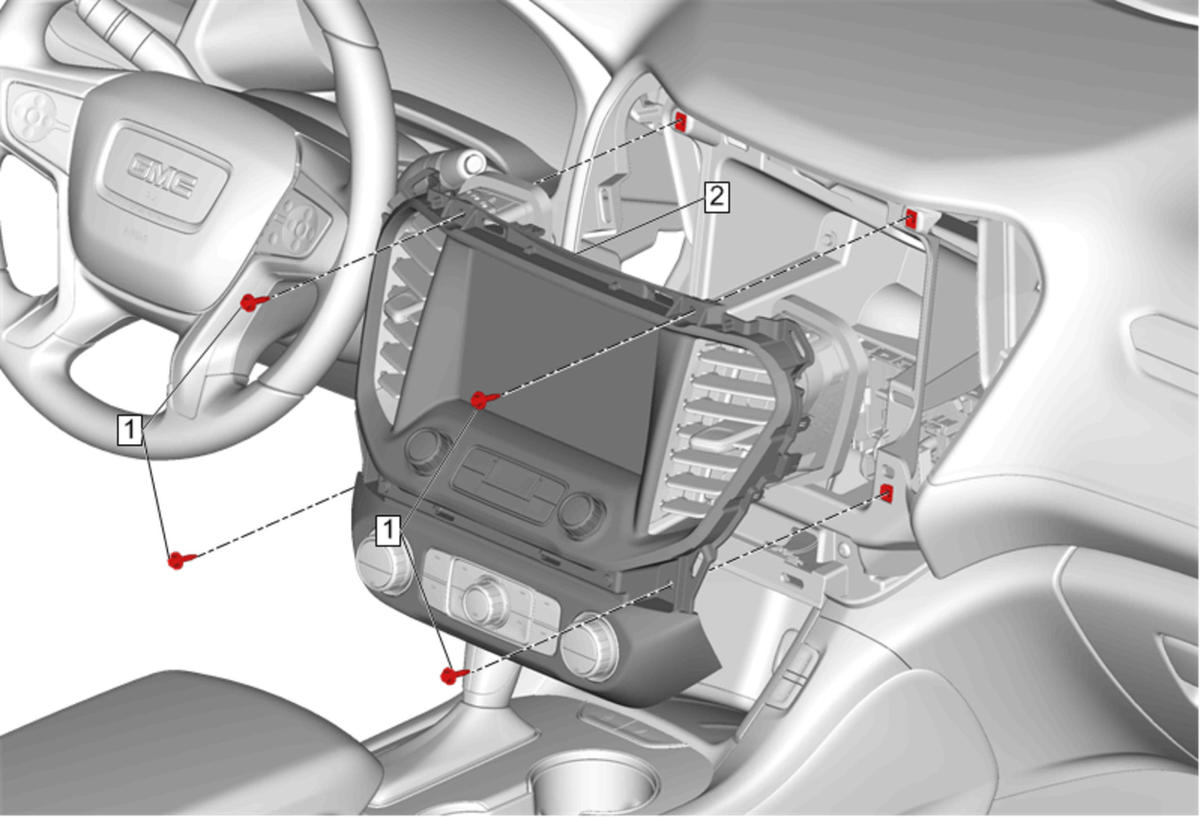

Fig 1: Radio Control Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Instrument Panel Center Trim Plate Applique. Refer to Instrument Panel Center Trim Plate Applique Replacement
1	Radio Control Bolt (Qty: 4) CAUTION: Refer to Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Radio Control Assembly Procedure Disconnect the electrical connectors. Transfer components as necessary.

Callout

Component Name

Preliminary Procedure
Remove Instrument Panel Center Trim Plate Applique. Refer to Instrument Panel Center Trim Plate Applique Replacement

Radio Control Bolt (Qty: 4)

CAUTION:

Refer to Fastener Caution

Tighten
2.5 N.m (22 lb in)

Radio Control Assembly

Procedure

Disconnect the electrical connectors.
Transfer components as necessary.
