Radio Function Switch Replacement
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

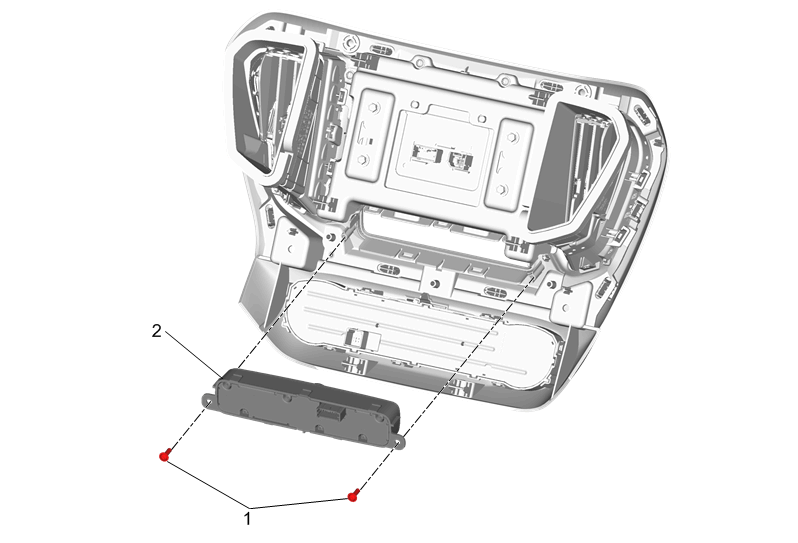

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove Instrument Panel Trim Plate. Refer to Instrument Panel Trim Plate Replacement (IOB) |
|
| 1 | Radio Function Switch Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution Tighten 1.5 N.m (13 lb in) |
| 2 | Radio Function Switch |
