Audio Amplifier Power, Ground and Serial Data (IO5/IO6)

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

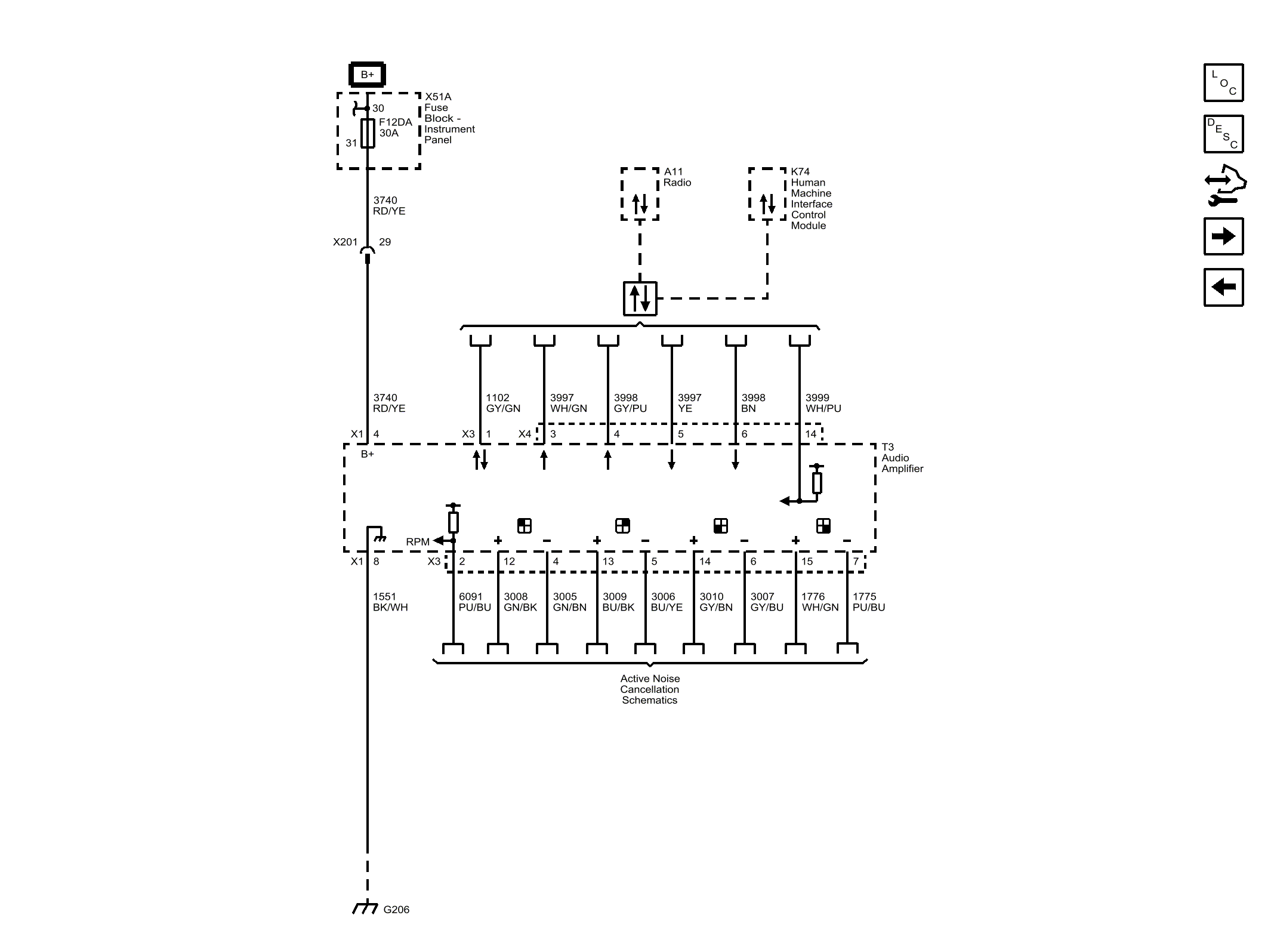

Fig 1: Audio Amplifier Power, Ground and Serial Data (IO5/IO6)
GM4373091Courtesy of GENERAL MOTORS COMPANY
