Radio Power, Ground and Serial Data (IO5/IO6)
WARNING:
This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

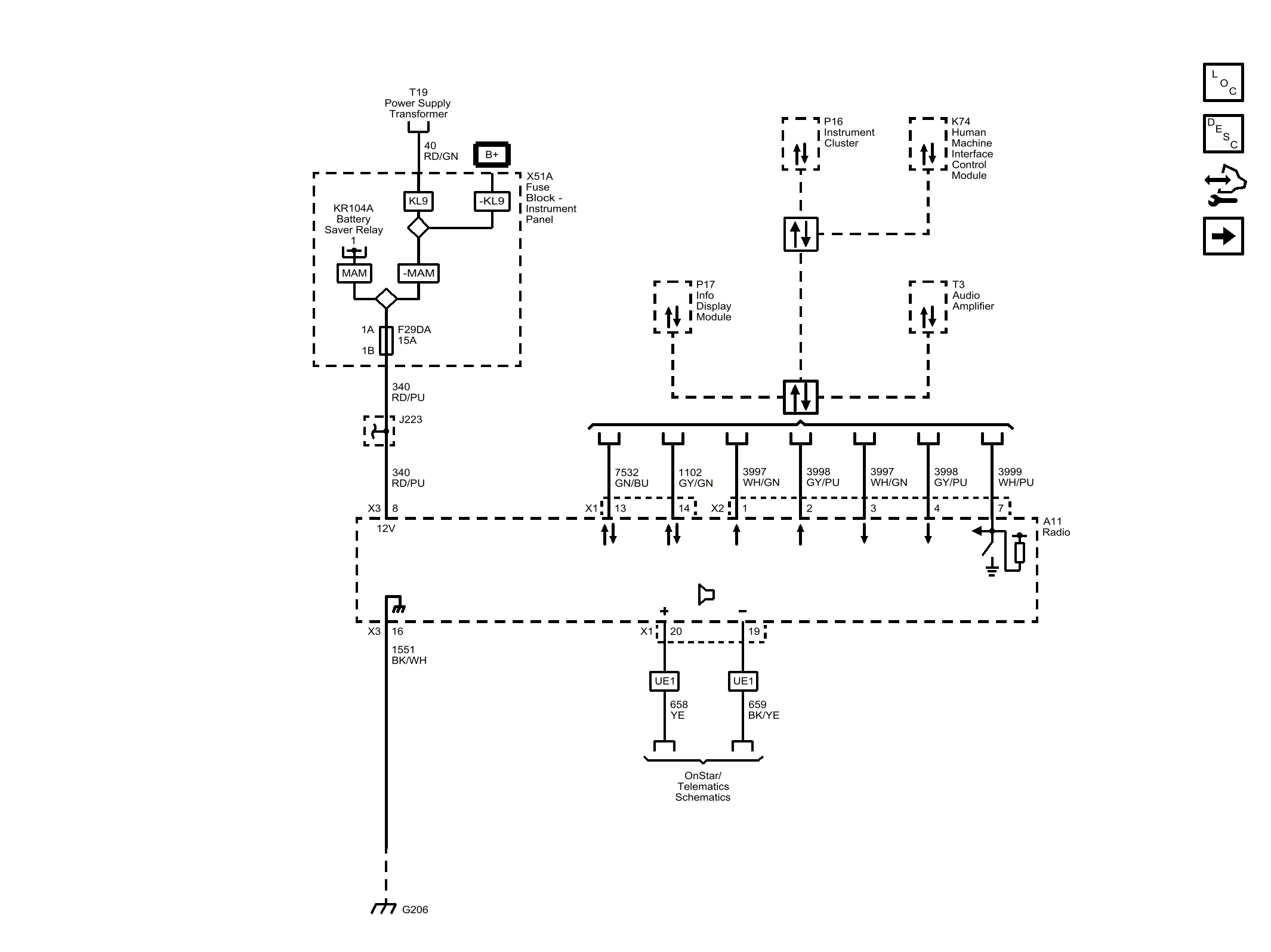

Fig 1: Radio Power, Ground and Serial Data (IO5/IO6)
Courtesy of GENERAL MOTORS COMPANY
