Installation Procedure

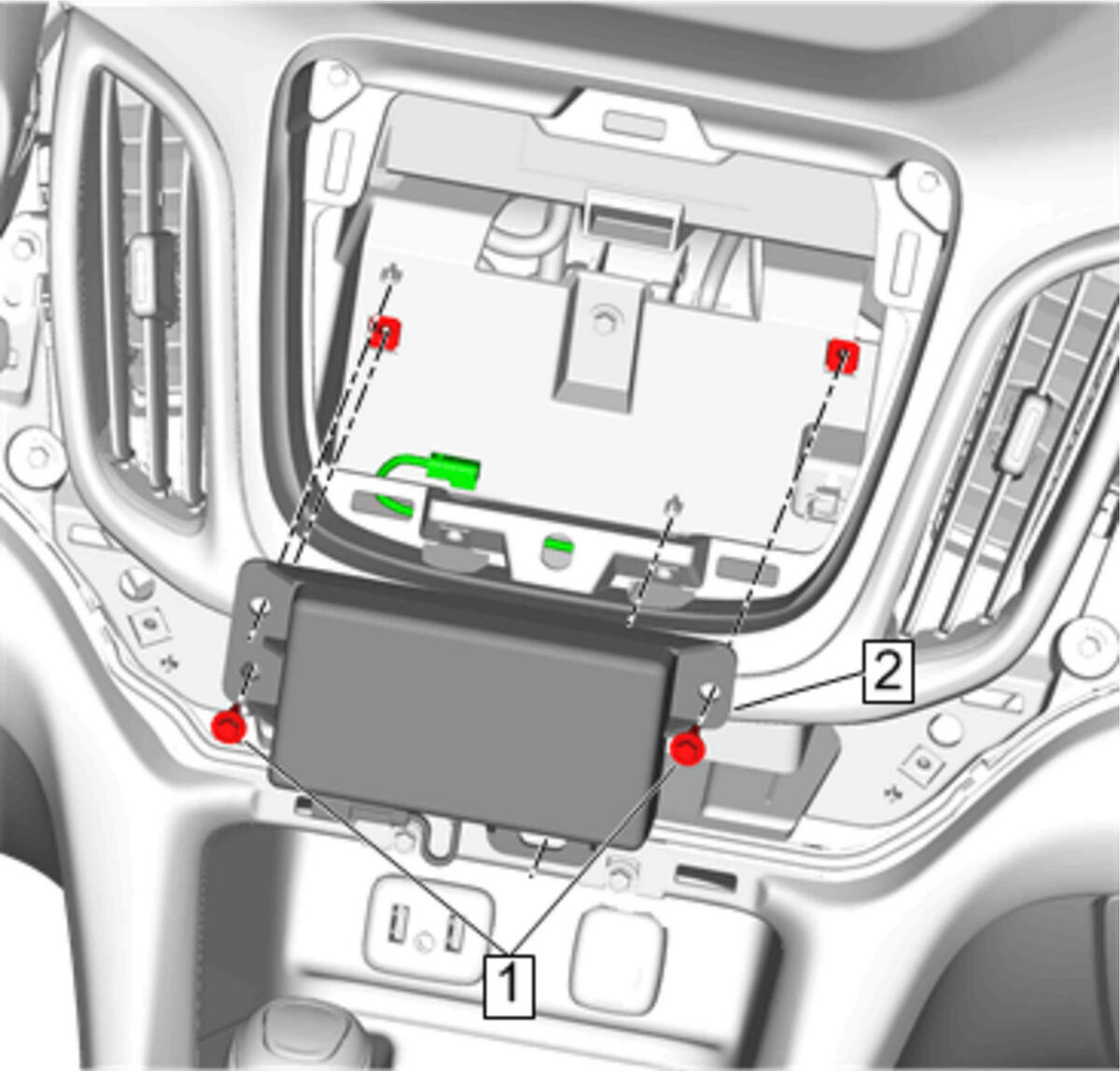

    Fig 1: Communication Interface Module Battery And Bolt
    GM4568511Courtesy of GENERAL MOTORS COMPANY
  1. Install Communication Interface Module Battery (2)
    2. CAUTION:

    Fastener Caution

  2. Install Communication Interface Module Battery Bolt (1) and tighten [2x] 2.5 N.m (22 lb in)
  3. Connect all electrical connectors.
    4. Fig 2: Radio Control Assembly
    GM4566303Courtesy of GENERAL MOTORS COMPANY
  4. Install Radio Control Assembly (1)

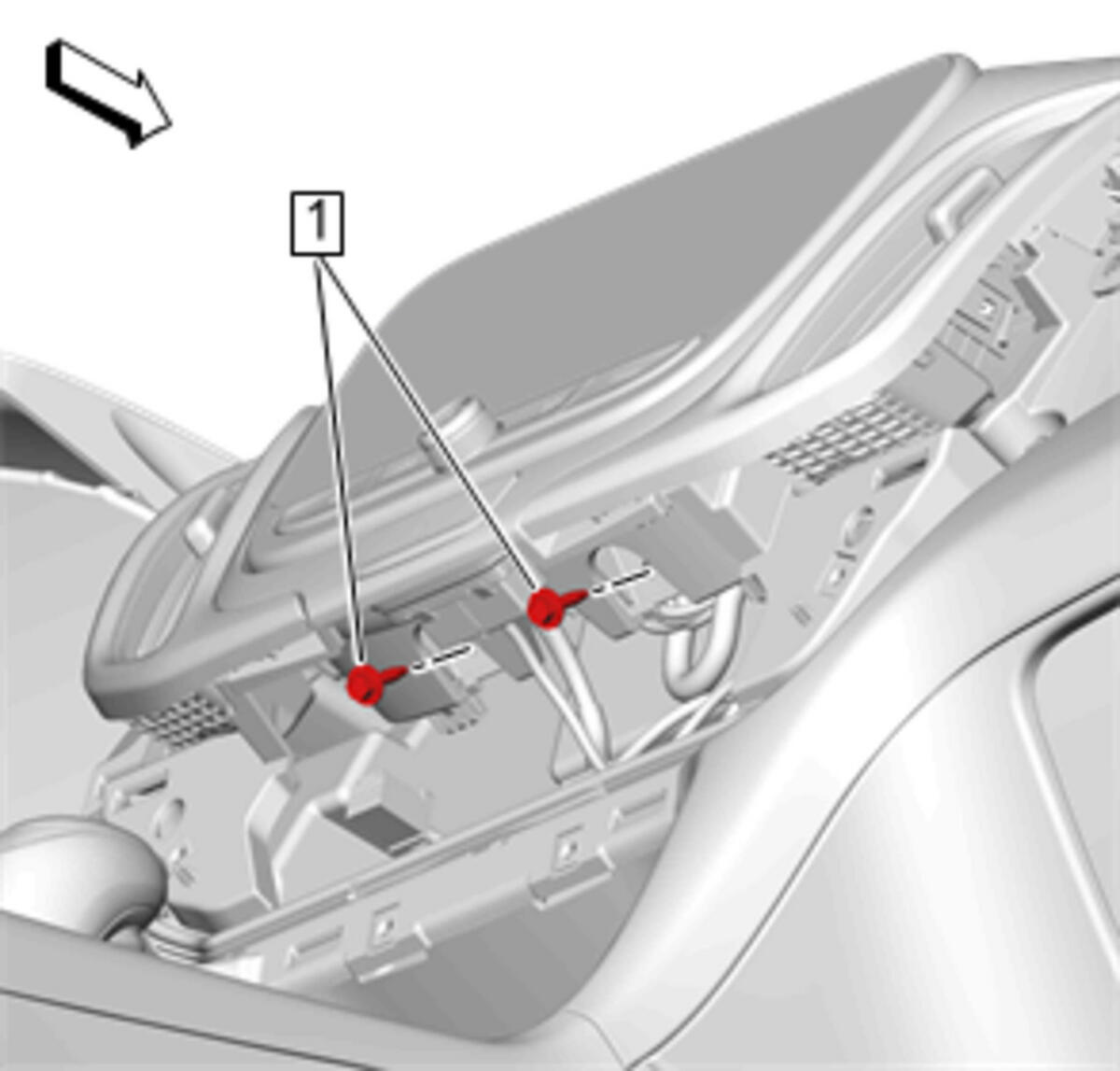

    5. Fig 3: Radio Control Bracket Bolt
    GM4566302Courtesy of GENERAL MOTORS COMPANY
  5. Install Radio Control Bracket Bolt (1) and tighten [2x] 2.5 N.m (22 lb in)

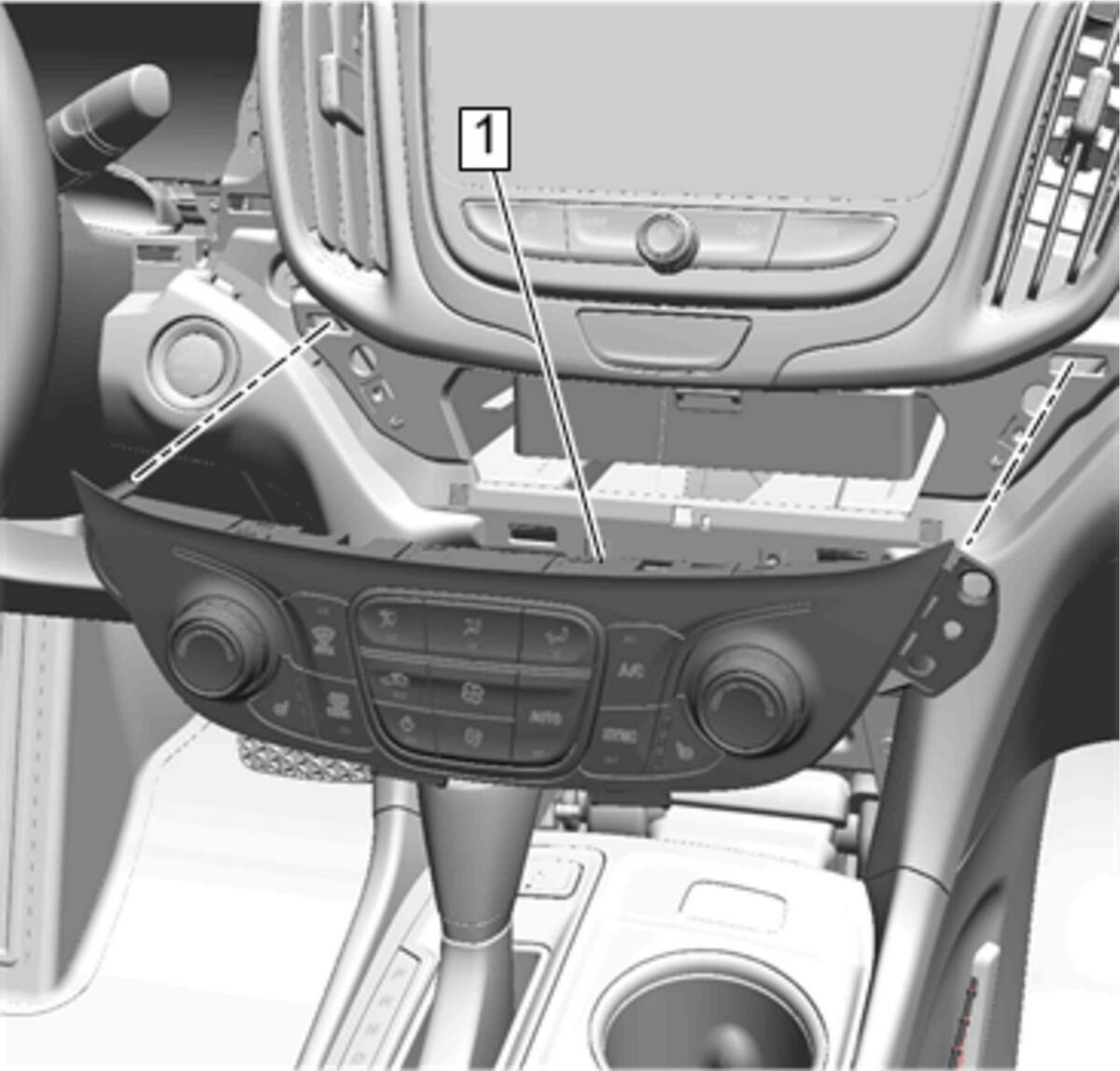

    6. Fig 4: Heater and Air Conditioning User Interface Control
    GM4588499Courtesy of GENERAL MOTORS COMPANY
  6. Install Heater and Air Conditioning User Interface Control (1) - Heater and Air Conditioning User Interface Control Replacement (Equinox)Heater and Air Conditioning User Interface Control Replacement (Terrain)
