Communication Interface Module Microphone Replacement

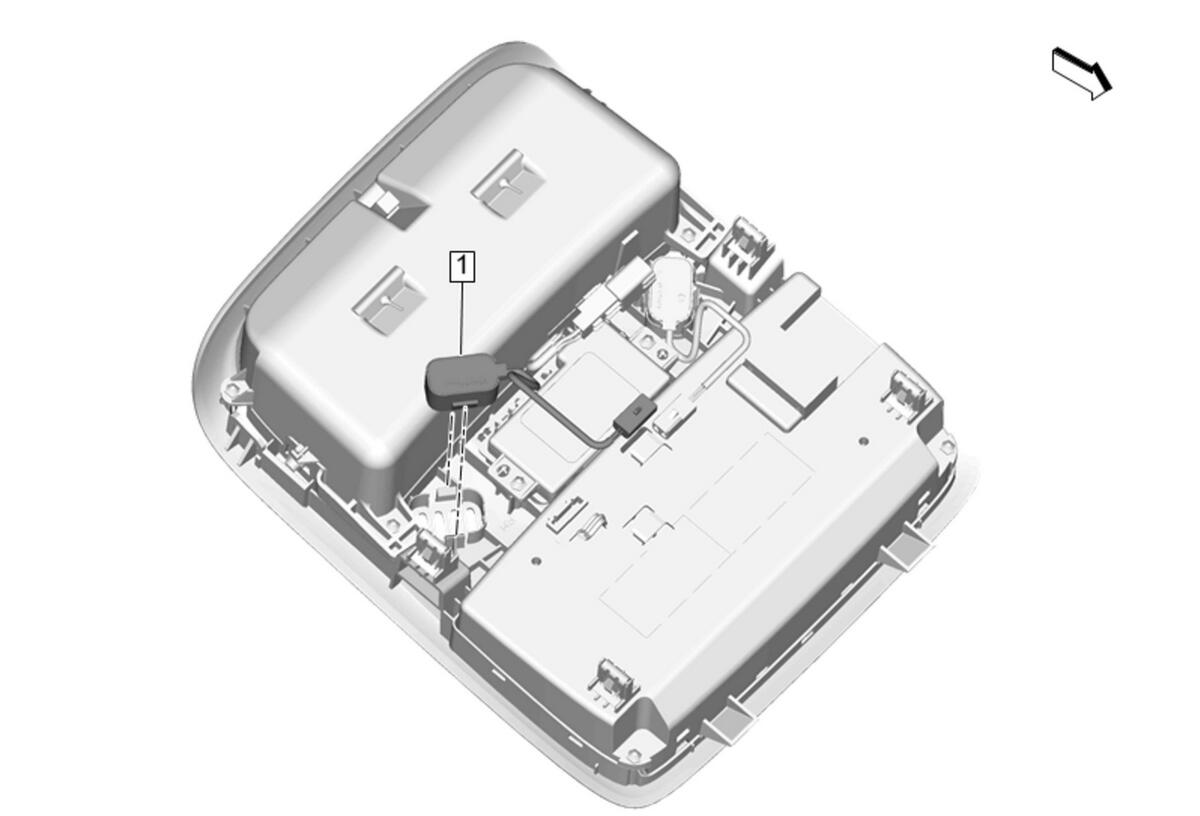

Fig 1: Communication Interface Module Microphone
GM4706750Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Roof Console Replacement
1 Communication Interface Module Microphone

Procedure

  1. Disconnect the electrical connector.
  2. Release the retaining tabs.
