Installation Procedure

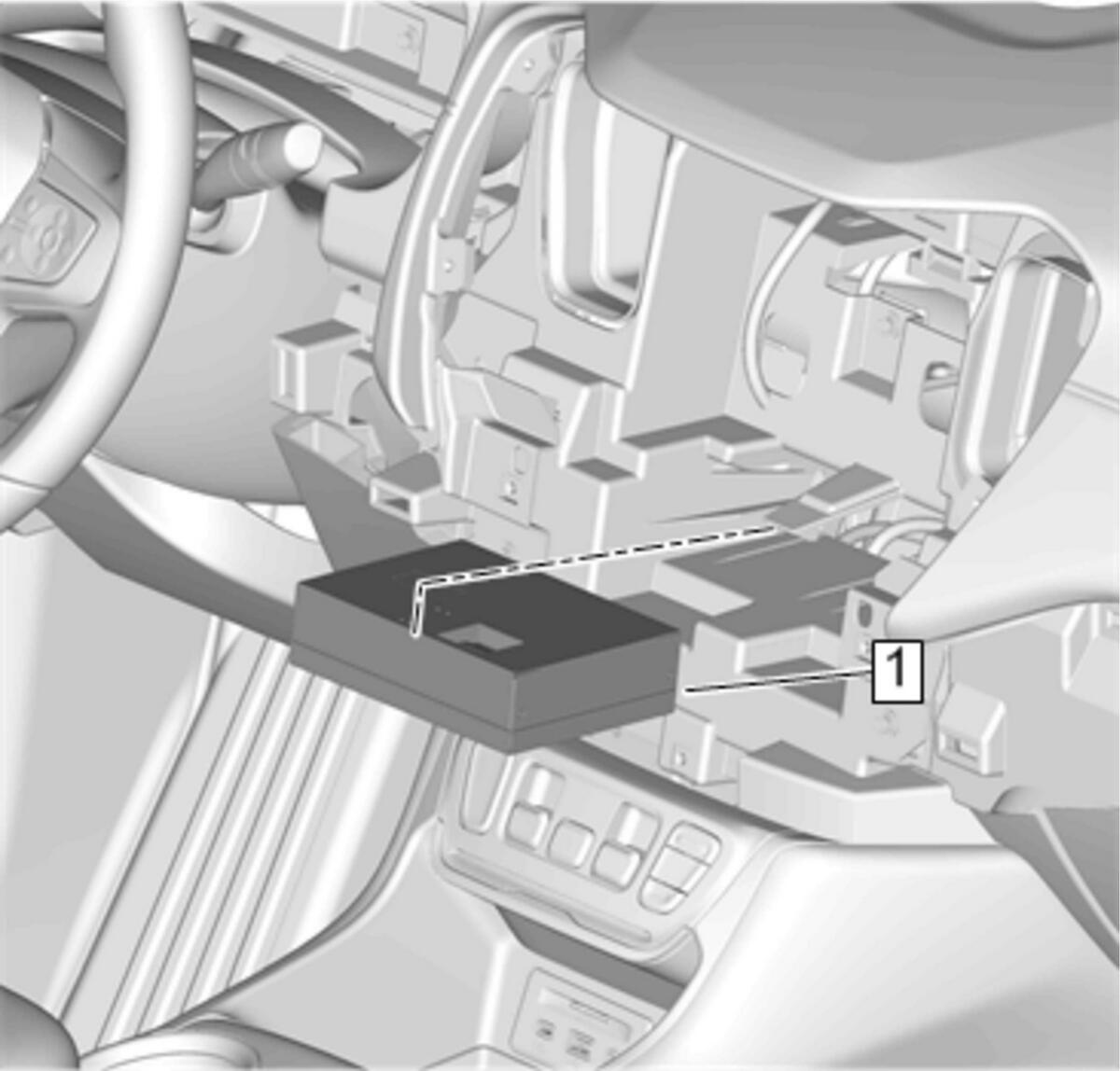

    Fig 1: Communication Interface Module
    GM4703357Courtesy of GENERAL MOTORS COMPANY
  1. Connect the electrical connectors.
  2. Install Communication Interface Module (1)

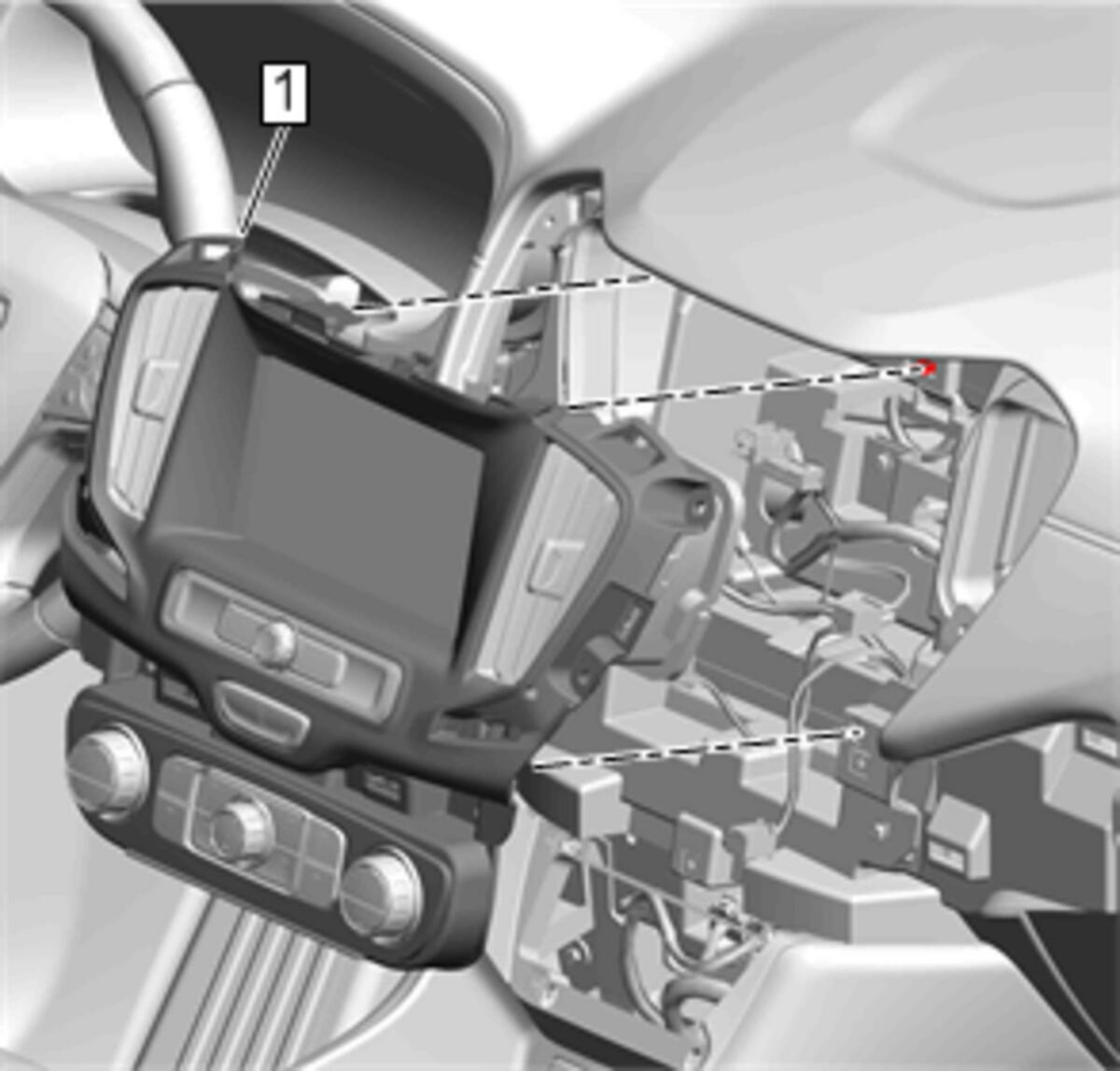

    3. Fig 2: Instrument Panel Radio Front And Rear Trim Plate Assembly
    GM4697279Courtesy of GENERAL MOTORS COMPANY
  3. Connect the electrical connectors.
  4. Install Instrument Panel Radio Front And Rear Trim Plate Assembly (1)

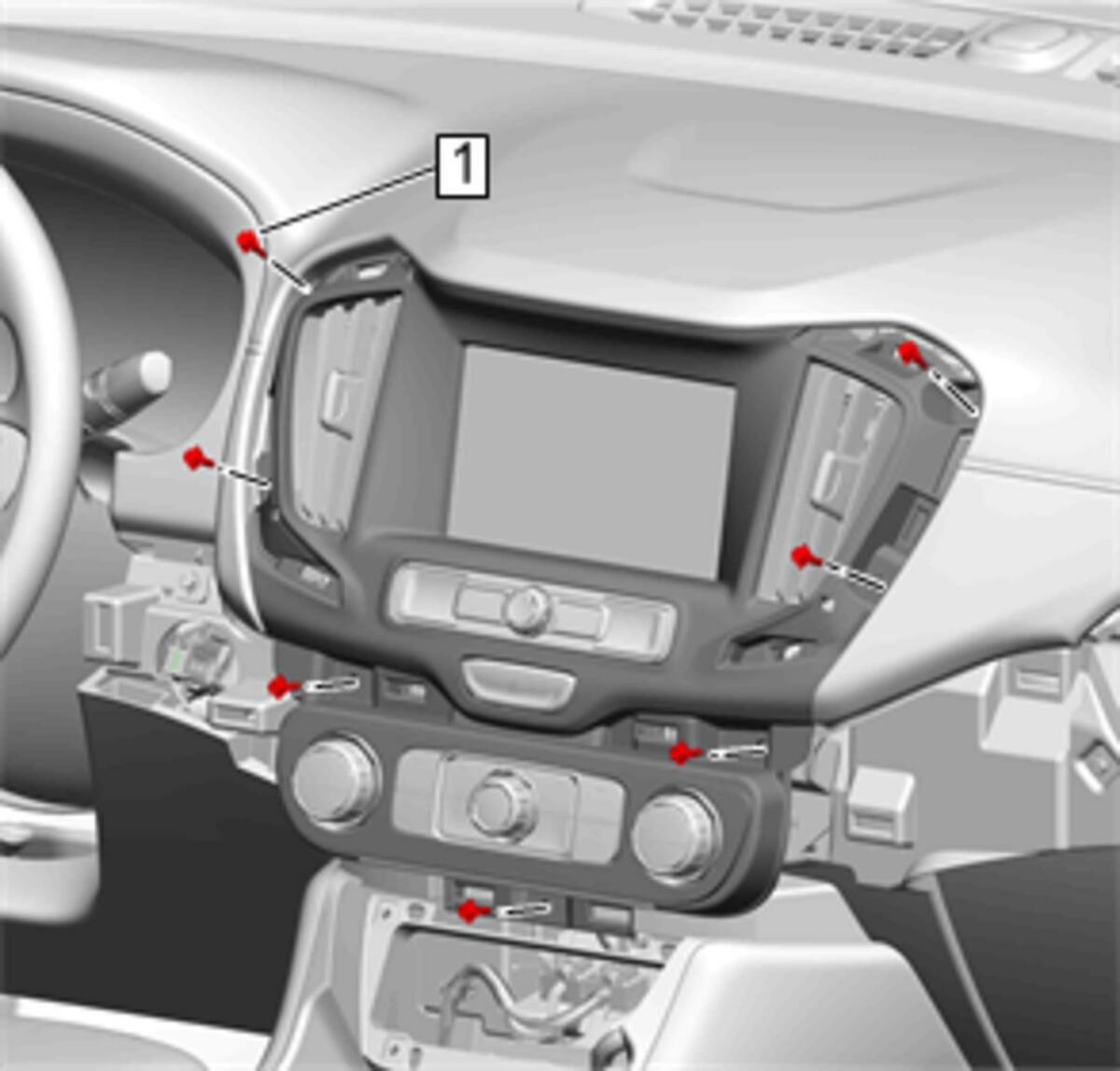

    5. Fig 3: Radio Control Bolt
    GM4697274Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Fastener Caution

  5. Install Radio Control Bolt (1) and tighten [7x] 2.5 N.m (22 lb in)

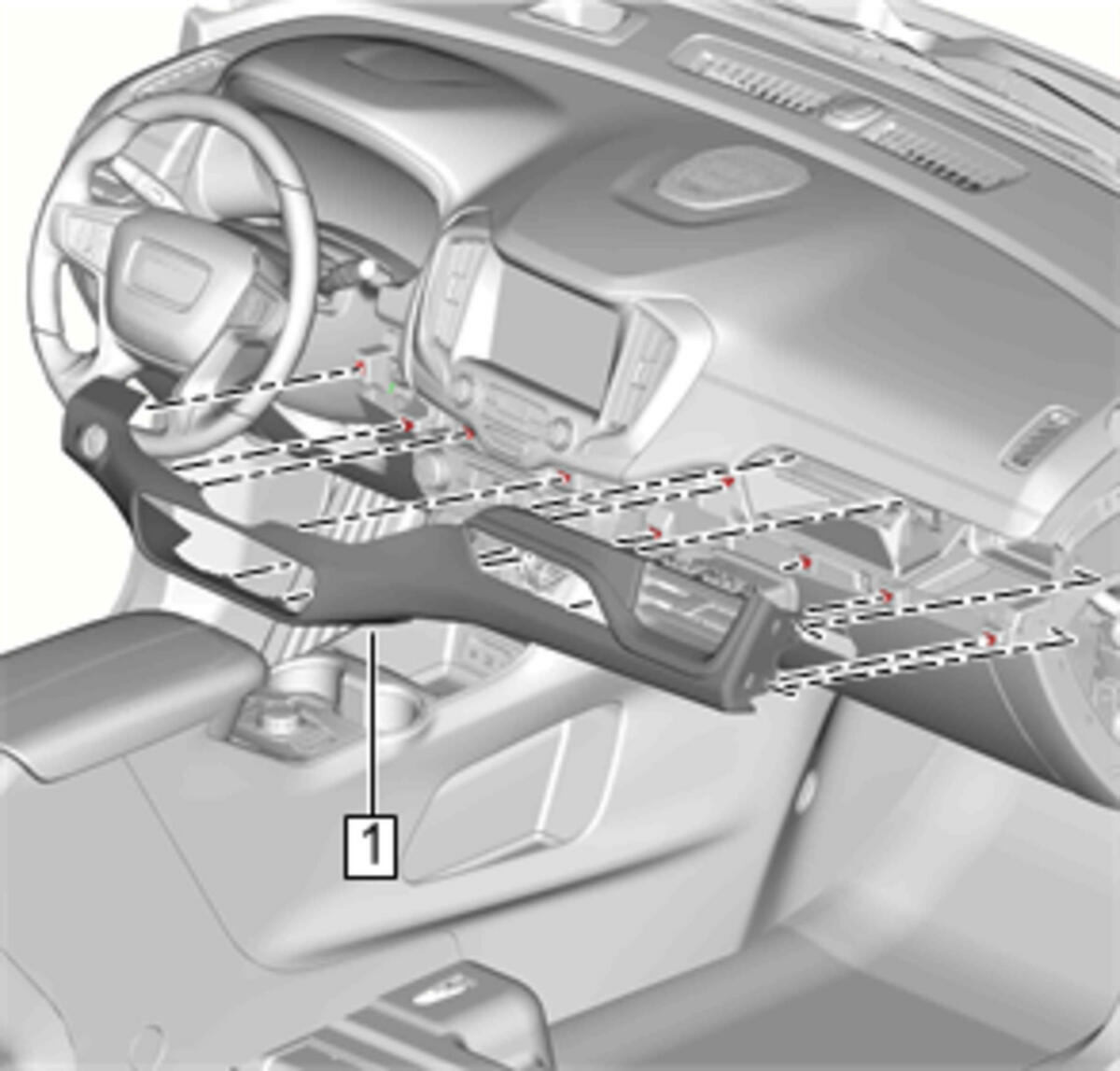

    6. Fig 4: Instrument Panel Trim Pad
    GM4693229Courtesy of GENERAL MOTORS COMPANY
  6. Install Instrument Panel Trim Pad - Right Side (1)- Instrument Panel Trim Pad Replacement - Right Side (Terrain)

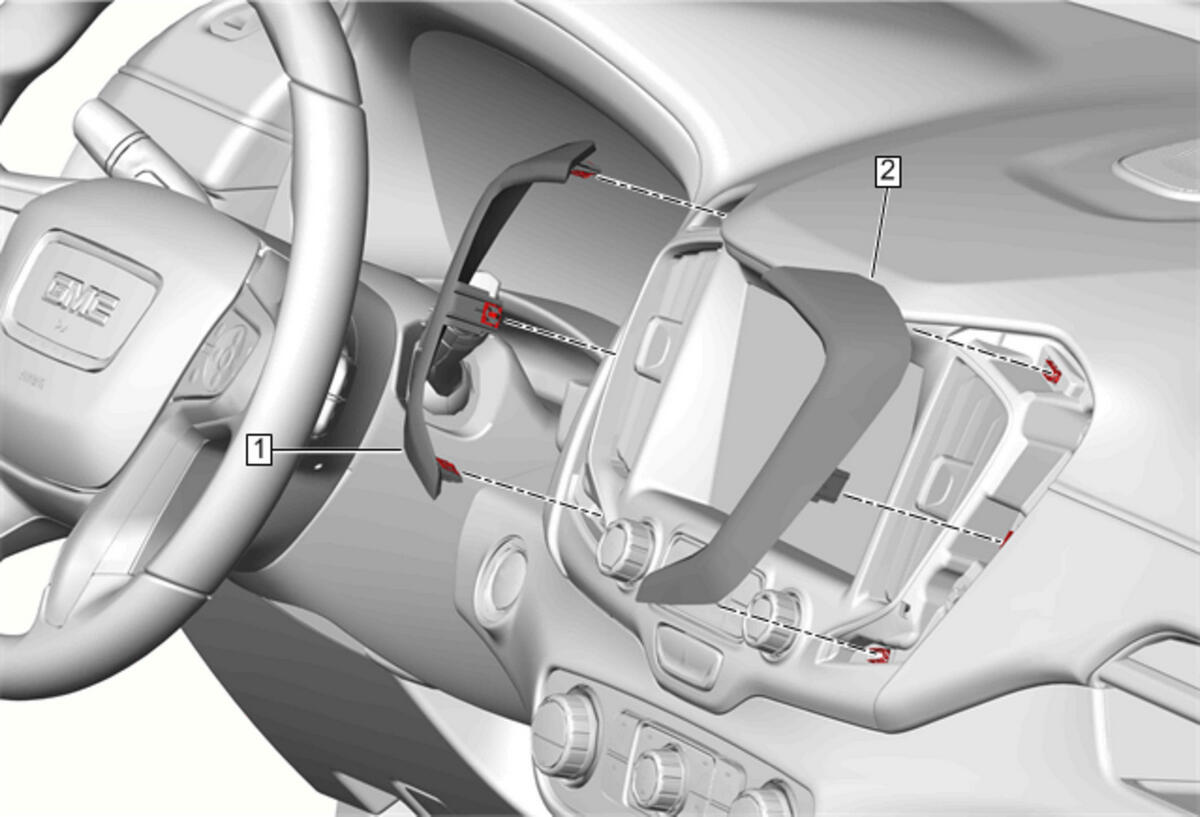

    7. Fig 5: Instrument Panel Center Trim Plate Applique
    GM4692425Courtesy of GENERAL MOTORS COMPANY
  7. Install Instrument Panel Center Trim Plate Applique (1, 2) - Instrument Panel Center Trim Plate Applique Replacement (Terrain)
  8. Perform the necessary programming and setup procedure:Control Module References
