Front Of The Center Console (GMC)

Front Of The Center Console (GMC)

Items
1. A97 Transmission Range Selector Controls (EPH) A97 Transmission Range Selector Controls (EPH)
2. E32 Cigarette Lighter Receptacle (SAO/U37) E32 Cigarette Lighter Receptacle (SAO/U37)
3. X83 Auxiliary Audio Input X83 Auxiliary Audio Input X1 (IO5/IO6+UST)X83 Auxiliary Audio Input X1 (IOB+USR)X83 Auxiliary Audio Input X1 (Z88)X83 Auxiliary Audio Input X2 (IO5/IO6+UST)X83 Auxiliary Audio Input X2 (IOB+USR)X83 Auxiliary Audio Input X2 (Z88)

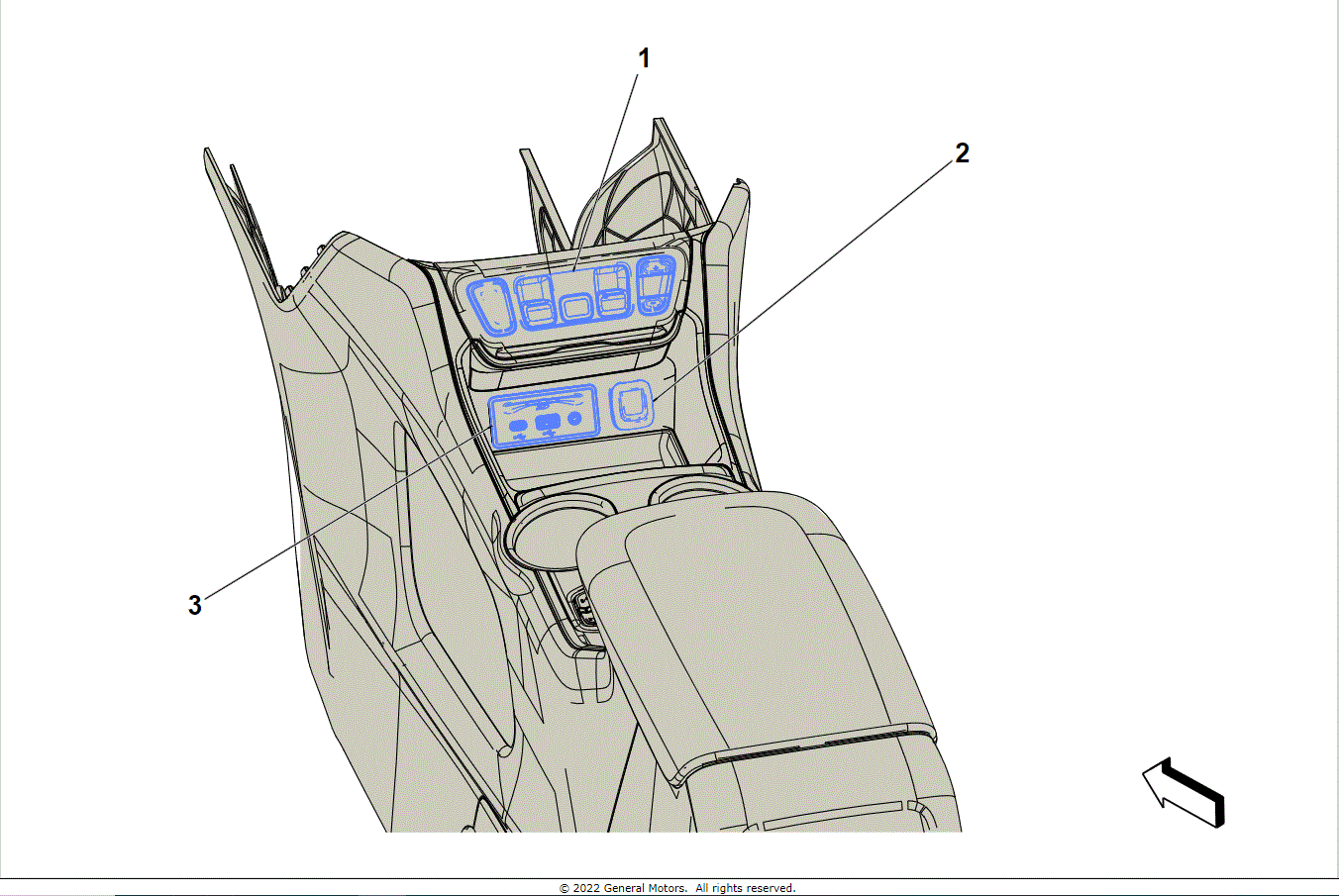

Fig 1: Center Console - Front (GMC)
GM4595325Courtesy of GENERAL MOTORS COMPANY
