Engine Control Module Bracket Replacement

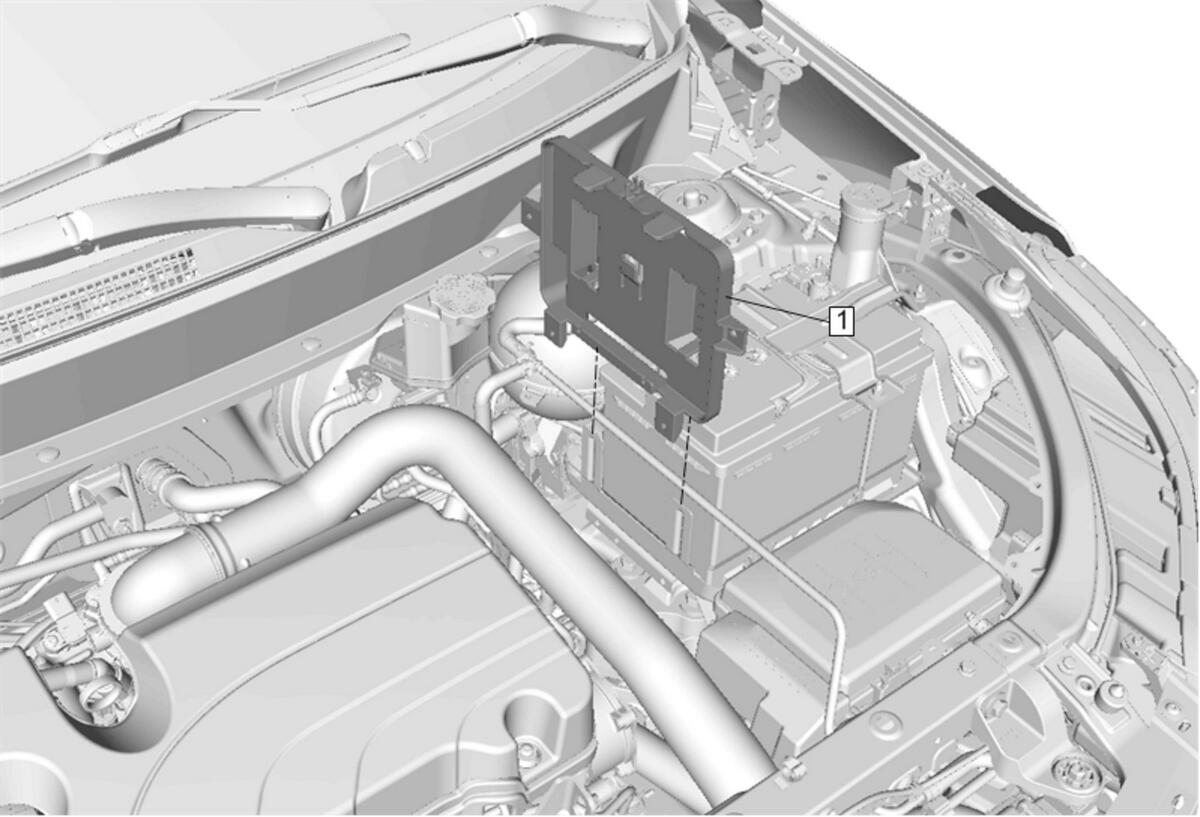

Fig 1: Engine Control Module Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Engine Control Module Replacement Reposition away Engine Coolant Air Bleed Hose@Engine Control Module Bracket - Engine Coolant Air Bleed Hose Replacement (Turbocharger Coolant Return pipe to Water Outlet, LYX)Engine Coolant Air Bleed Hose Replacement (Radiator Surge Tank to Turbocharger Coolant Return Pipe to Radiator, LYX) Remove wiring harness from engine control module bracket.
1	Engine Control Module Bracket Procedure Release retaining tab to remove bracket from battery tray.

Callout

Component Name

Preliminary Procedures

Engine Control Module Bracket
Procedure
Release retaining tab to remove bracket from battery tray.
