Steering Wheel (GMC With UVD) 1 of 2

Steering Wheel (GMC With UVD) 1 of 2

Items
1. K32 Steering Wheel Heating Control Module (UVD) K32 Steering Wheel Heating Control Module (UVD)
2. S70R Steering Wheel Controls Switch - Right S70R Steering Wheel Controls Switch - Right (EPH)S70R Steering Wheel Controls Switch - Right (-EPH)
3. S70F Steering Wheel Controls Switch - Radio Volume S70F Steering Wheel Controls Switch - Radio Volume
4. S70E Steering Wheel Controls Switch - Radio Presets S70E Steering Wheel Controls Switch - Radio Presets
5. F107 Steering Wheel Air Bag F107 Steering Wheel Air Bag (AJG)F107 Steering Wheel Air Bag X1 (AY0)F107 Steering Wheel Air Bag X2 (AY0)
6. S70L Steering Wheel Controls Switch - Left S70L Steering Wheel Controls Switch - Left (-EPH)S70L Steering Wheel Controls Switch - Left (EPH)

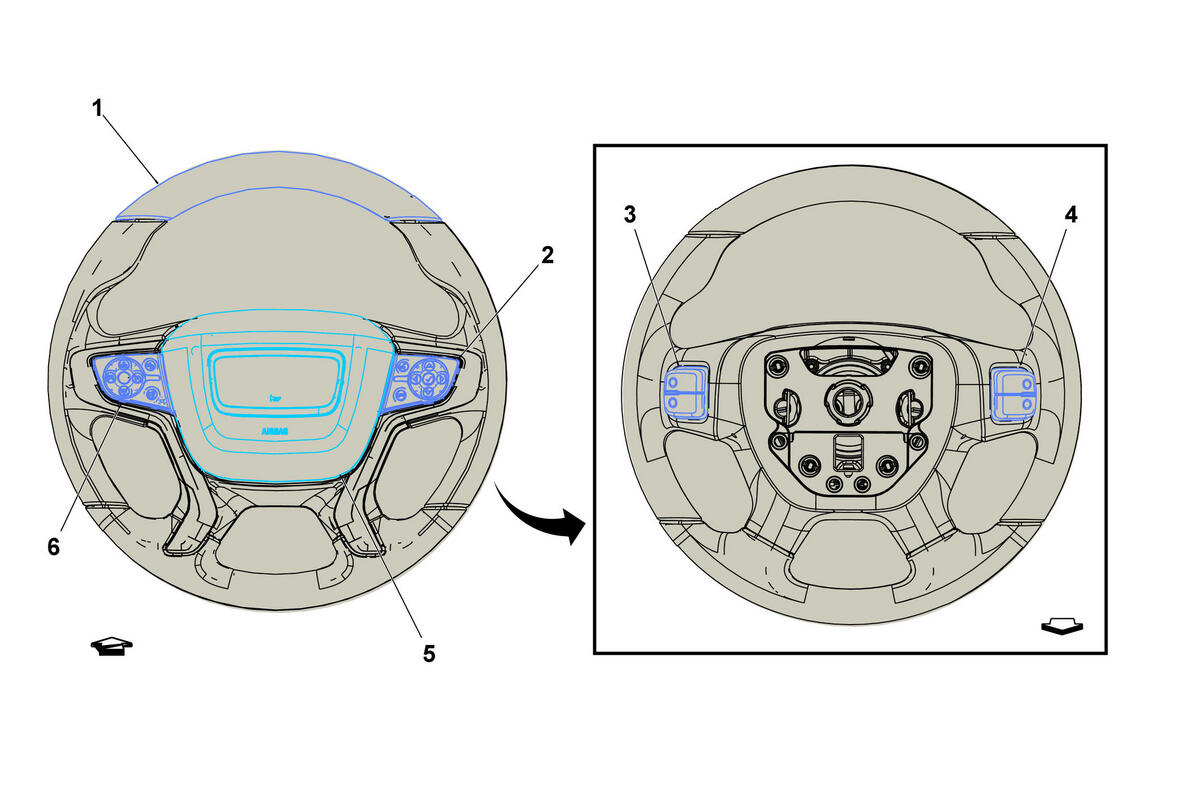

Fig 1: Steering Wheel (GMC with UVD) 1 of 2
GM4595321Courtesy of GENERAL MOTORS COMPANY
