Power Transfer Unit Shift Actuator (F48)

Power Transfer Unit Shift Actuator (F48)

Items
1. M115 Power Transfer Unit Shift Actuator (F48) M115 Power Transfer Unit Shift Actuator X1 (F48)M115 Power Transfer Unit Shift Actuator X2 (F48)

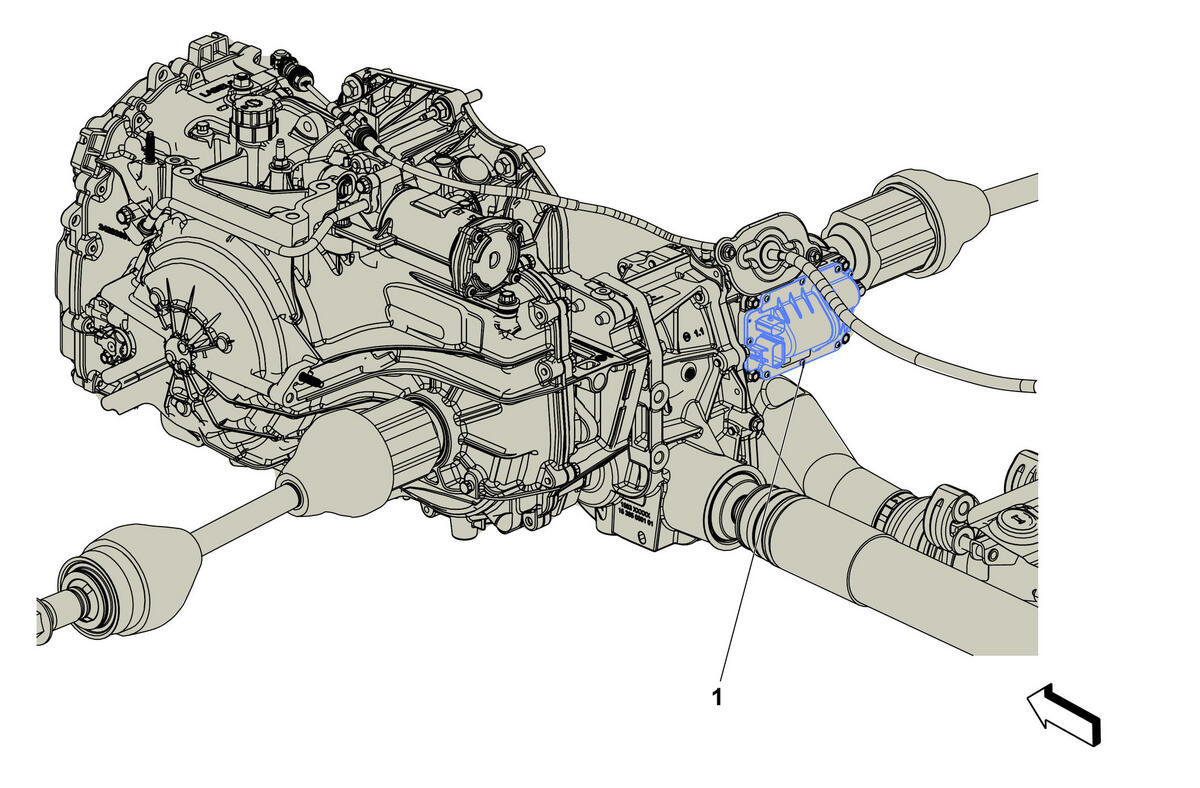

Fig 1: Power Transfer Unit Shift Actuator (F48)
GM4595300Courtesy of GENERAL MOTORS COMPANY
