Ride Mode Controls (With EPH)

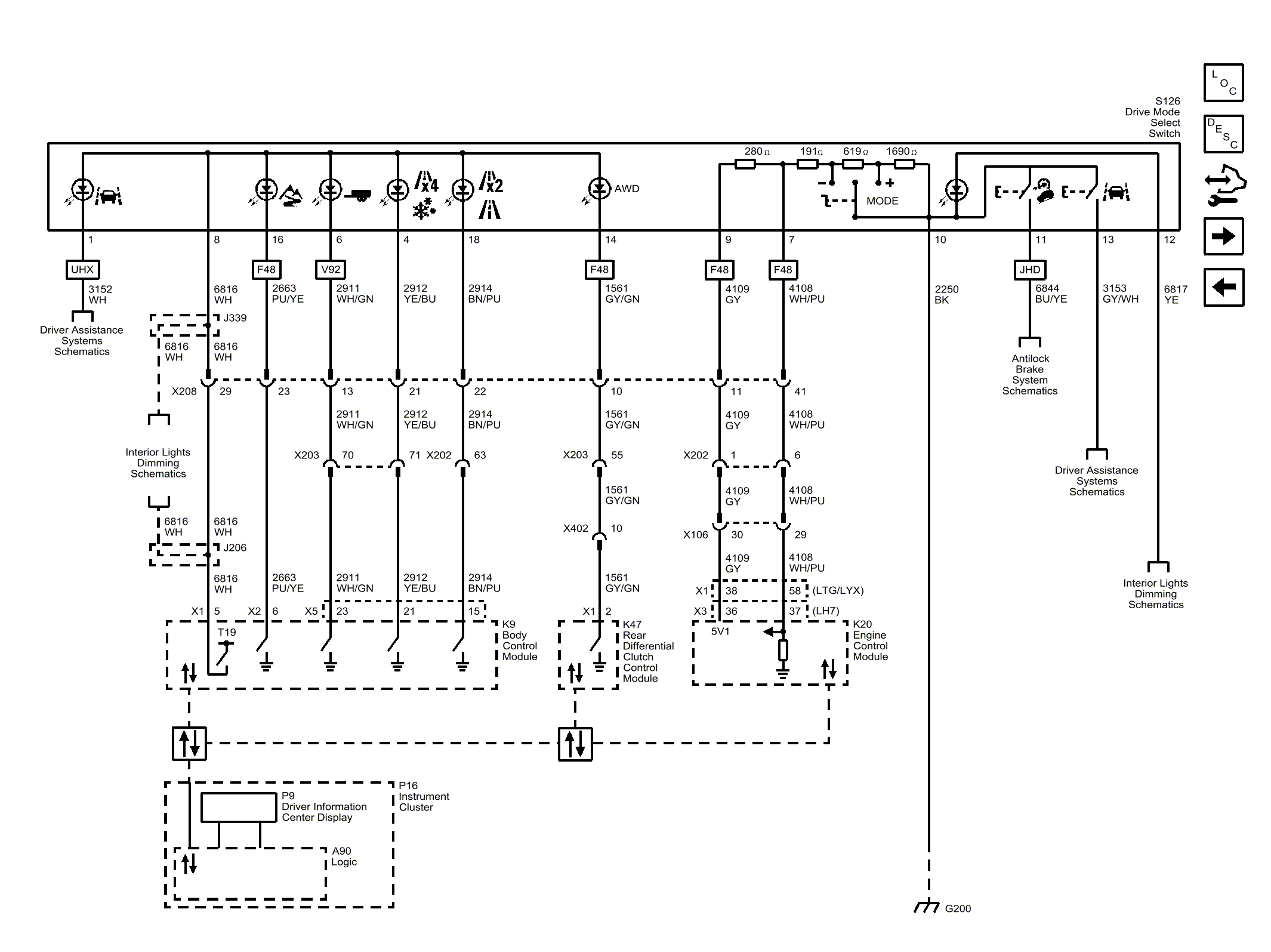

Fig 1: Ride Mode Controls (With EPH)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
