Engine Controls And Fuel - 2.5L (LCV) - Engine Controls Wiring Schematics
>>
Schematic Wiring Diagrams
>>
Engine Controls Wiring Schematics
>>
Controlled/Monitored Subsystem References
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

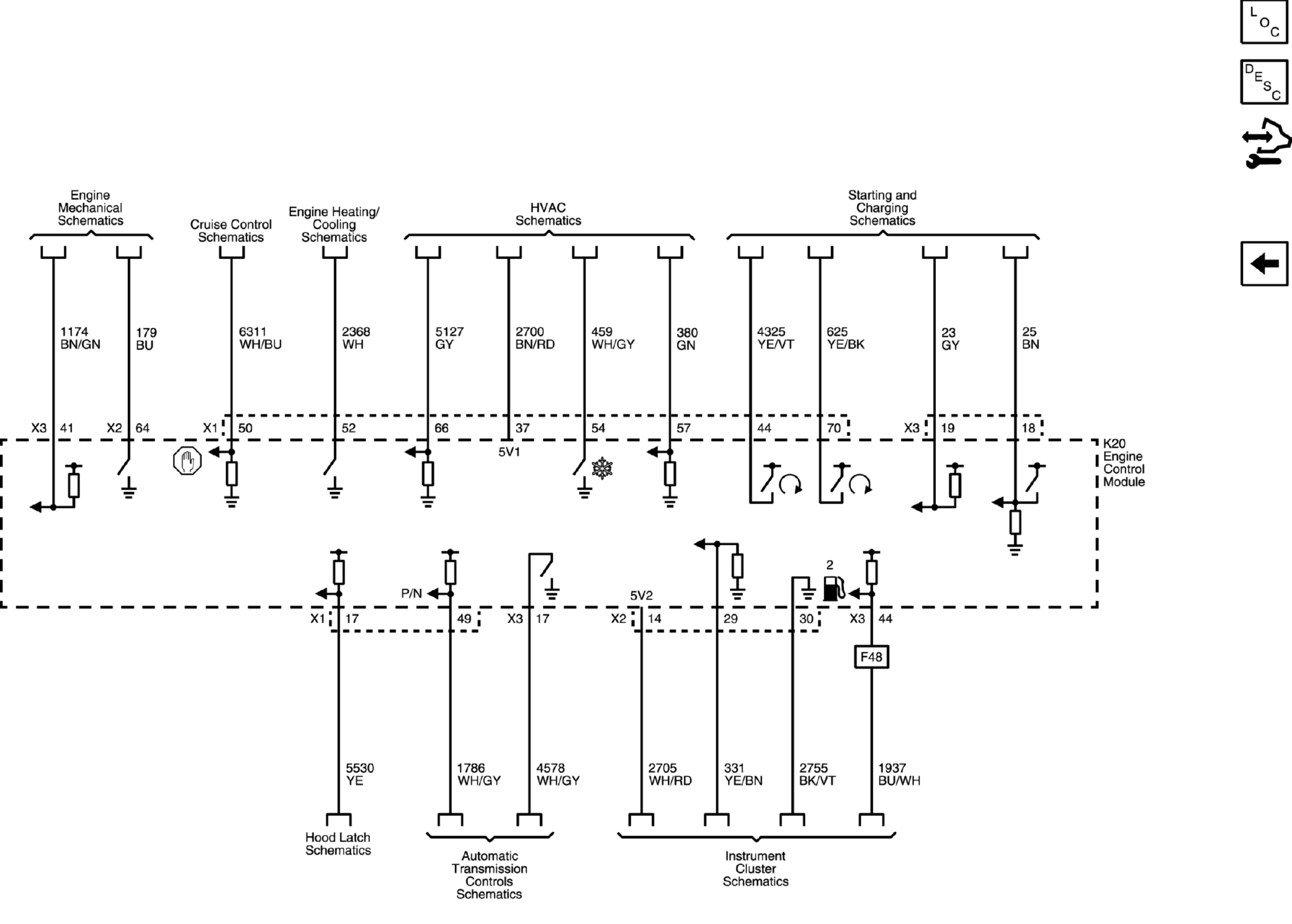

Controlled/Monitored Subsystem References
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
