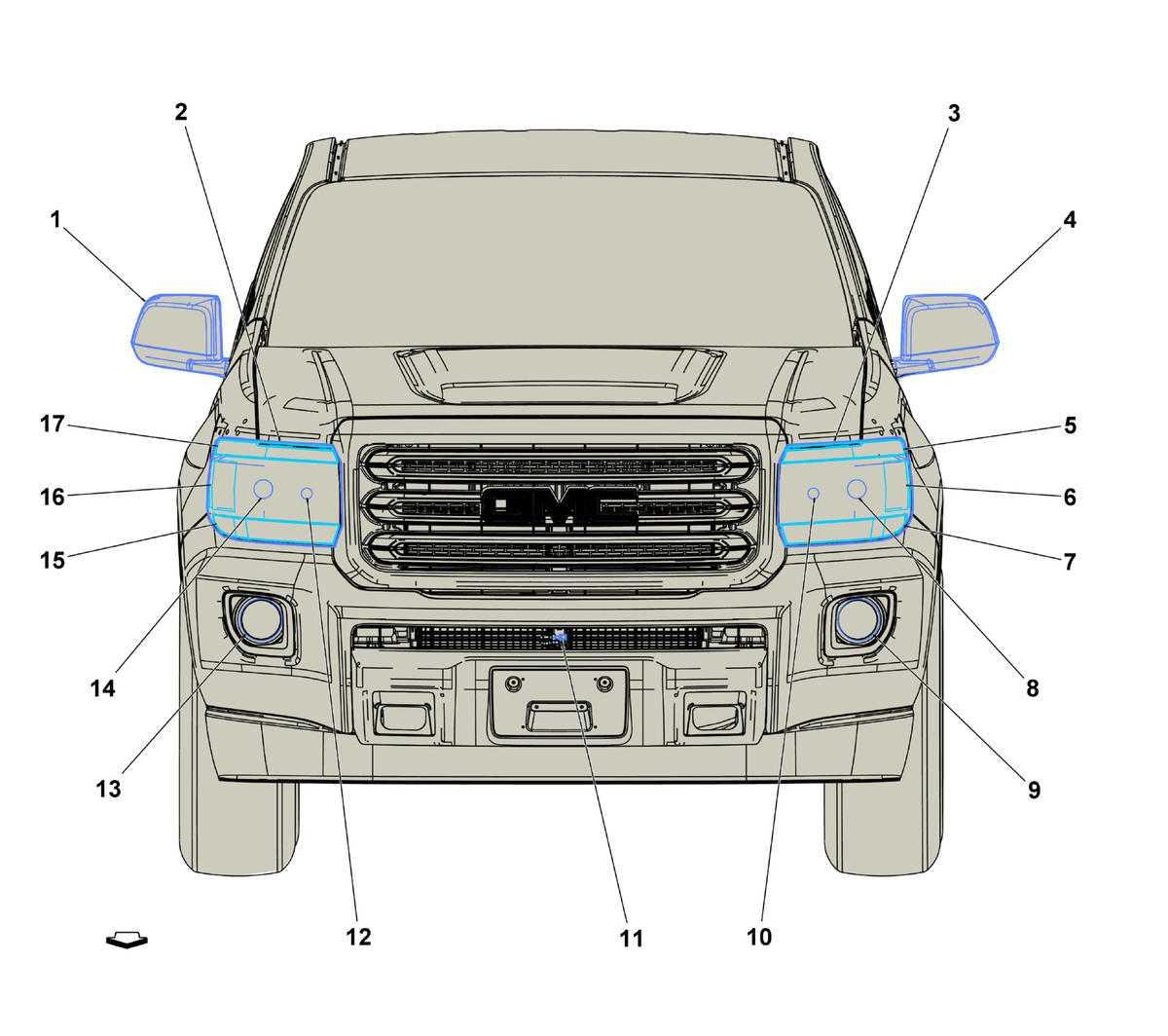

| (1) A9B Outside Rearview Mirror - Passenger |
| (2) E13RA Headlamp Assembly - Right |
| (3) E13LA Headlamp Assembly - Left |
| (4) A9A Outside Rearview Mirror - Driver |
| (5) E4AC Park/Daytime Running Lamp - Left (Z88) |
| (6) E4N Park/Turn Signal Lamp - Left E4N Park/Turn Signal Lamp - Left |
| (7) E4AL Park/Daytime Running Lamp - Left Lower (Z88) |
| (8) E4G Headlamp - Left Low Beam E4G Headlamp - Left Low Beam |
| (9) E29LF Fog Lamp - Left Front (T3U) E29LF Fog Lamp - Left Front (-ULV)E29LF Fog Lamp - Left Front (ULV) |
| (10) E4E Headlamp - Left High Beam E4E Headlamp - Left High Beam |
| (11) B9 Ambient Air Temperature Sensor B9 Ambient Air Temperature Sensor () |
| (12) E4F Headlamp - Right High Beam E4F Headlamp - Right High Beam () |
| (13) E29RF Fog Lamp - Right Front (T3U) E29RF Fog Lamp - Right Front (-ULV)E29RF Fog Lamp - Right Front (ULV) |
| (14) E4H Headlamp - Right Low Beam E4H Headlamp - Right Low Beam |
| (15) E4AM Park/Daytime Running Lamp - Right Lower (Z88) |
| (16) E4P Park/Turn Signal Lamp - Right E4P Park/Turn Signal Lamp - Right |
| (17) E4AD Park/Daytime Running Lamp - Right (Z88) |
