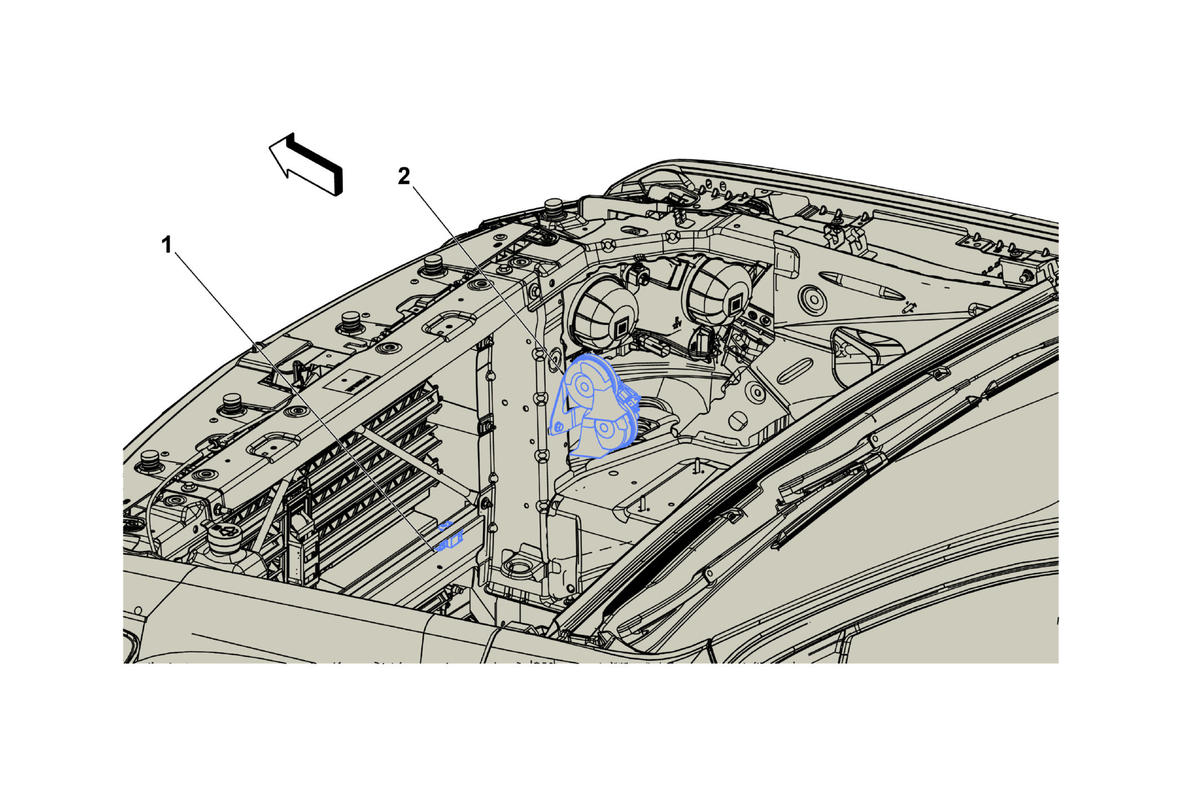

Right Front of Engine Compartment Components

GM3924278Courtesy of GENERAL MOTORS COMPANY
Items
(1) B59R Front Impact Sensor - Right B59R Front Impact Sensor - Right
(2) P13 Horn Assembly P13 Horn Assembly
