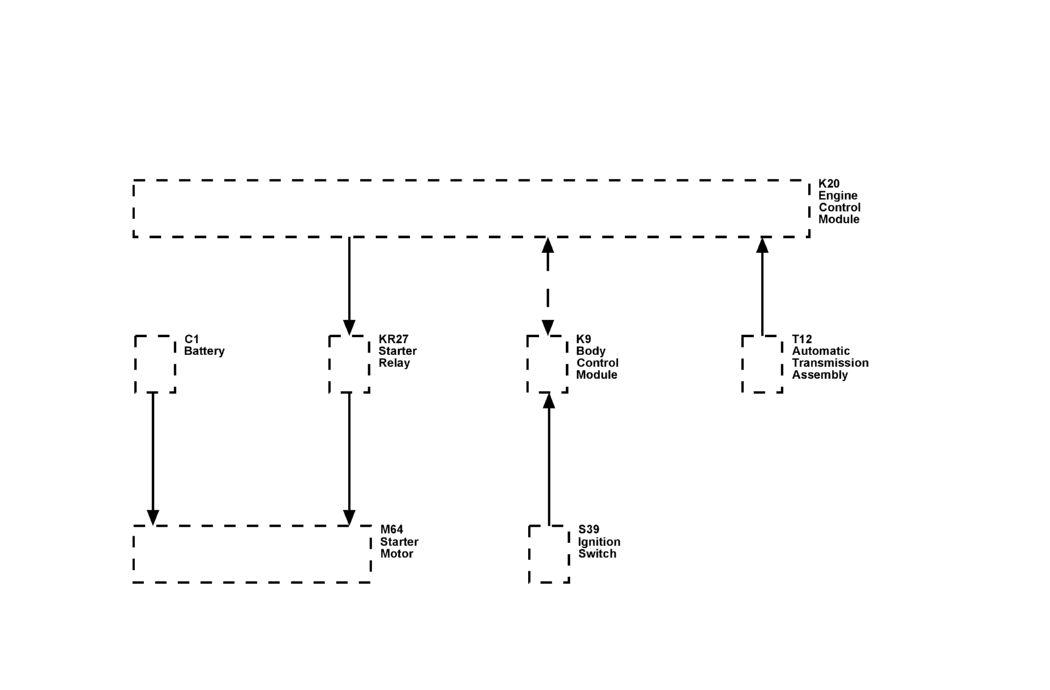

Starting System Block Diagram

GM3603725Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
DD Serial Data - GMLAN High Speed
K20 K20 Engine Control Module
C1 C1 Battery
KR27 KR27 Starter Relay
K9 K9 Body Control Module
T12 T12 Automatic Transmission Assembly
M64 M64 Starter Motor
S39 S39 Ignition Switch
