K20 Engine Control Module X2 (LH7)

WARNING: This page is about a different car, the 2018 GMC Terrain and 2018 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

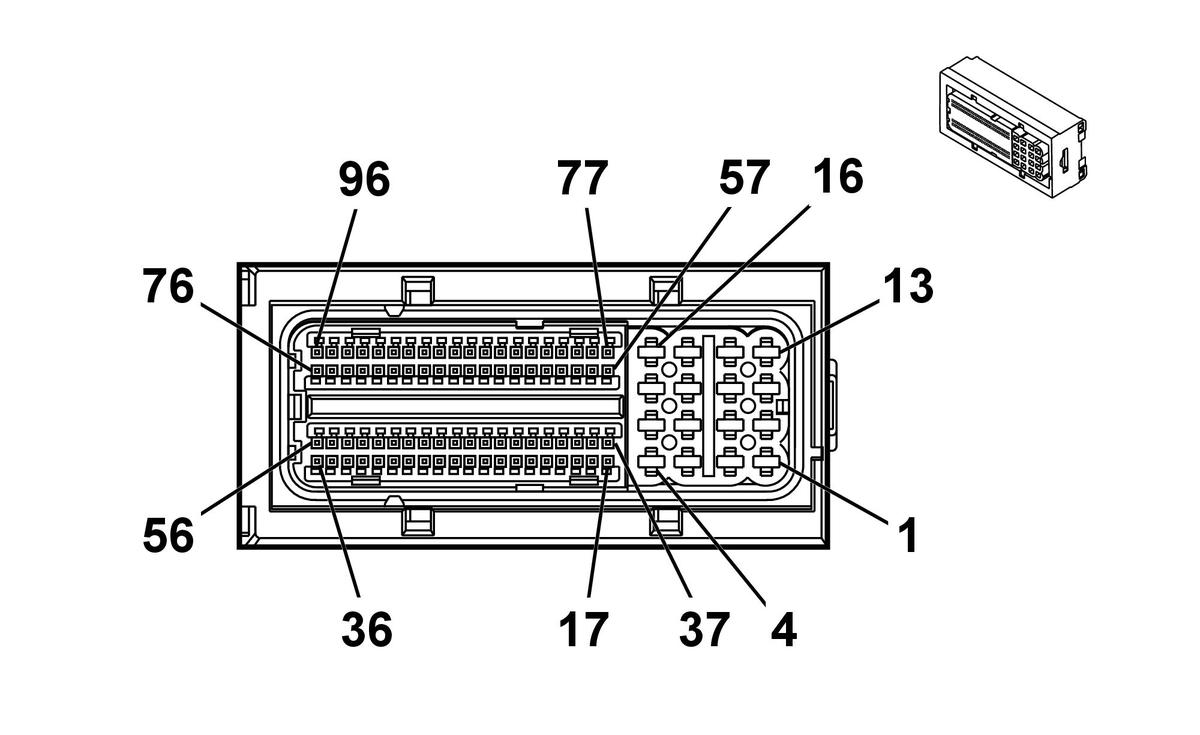

Connector Part Information

Harness Type: Engine
OEM Connector: 12672831
Service Connector: 19354404
Description: 96-Way F 0.64 MTS-B, 2.8 ATS Series, Sealed (BK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	13579752	J-35616-4A (PU)	J-38125-36	Not Available	Not Available	Not Available	Not Available
II	13584448	J-35616-64B (LT BU)	J-38125-12A	1719532-5	Lear 7	H	H
III	13584530	J-35616-4A (PU)	J-38125-36	4-964273-1	Yazaki 15	C	5
IV	13584530	J-35616-4A (PU)	J-38125-36	4-964273-1	Yazaki 15	E	1

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	1.5	BU/GY	4902	Direct Fuel Injector (DFI) High Voltage Supply Cylinder 2	IV	LH7
2	1.5	GN/GY	4903	Direct Fuel Injector (DFI) High Voltage Supply Cylinder 3	IV	LH7
3	1.5	BU/WH	4904	Direct Fuel Injector (DFI) High Voltage Supply Cylinder 4	IV	LH7
4	1.5	BN/WH	4901	Direct Fuel Injector (DFI) High Voltage Supply Cylinder 1	IV	LH7
5	1.5	BU	4802	Direct Fuel Injector (DFI) High Voltage Control Cylinder 2	IV	LH7
6	1.5	GN	4803	Direct Fuel Injector (DFI) High Voltage Control Cylinder 3	IV	LH7
7	1.5	GY/BU	4804	Direct Fuel Injector (DFI) High Voltage Control Cylinder 4	IV	LH7
8	1.5	BN	4801	Direct Fuel Injector (DFI) High Voltage Control Cylinder 1	IV	LH7
9 - 11	-	-	-	Not Occupied	-	-
12	0.5	GN	3919	Piston Cooling Oil Pressure Signal	I	LH7
13	2.5	GY/BN	1582	Glow Plug Control 2	III	LH7
14	2.5	GY/YE	1584	Glow Plug Control 4	III	LH7
15	2.5	GY/GN	1583	Glow Plug Control 3	III	LH7
16	2.5	GY/BU	1581	Glow Plug Control 1	III	LH7
17	0.5	BK/VT	2755	Oil Pressure Sensor Low Reference	II	LH7
18	0.5	YE/BN	331	Oil Pressure Sensor Signal	II	-
19	0.5	WH/RD	2705	Oil Pressure Sensor 5V Reference	II	LH7
20	0.5	GY	9000	Blunt Cut	II	LH7
21	0.5	GY	9001	Blunt Cut	II	LH7
22	0.5	GY	9002	Blunt Cut	II	LH7
23	0.5	GY/RD	5928	Variable Nozzle Turbo Position Sensor 5V Reference	II	LH7
24	0.5	VT/YE	5947	Variable Nozzle Turbo Position Sensor Signal	II	-
25	0.5	BK/BN	5929	Variable Nozzle Turbo Position Sensor Low Reference	II	LH7
26	0.5	BN	7348	Induction Air Temperature Sensor 2 Signal	II	-
27	0.5	GY	9003	Blunt Cut	II	LH7
28	0.5	GN/VT	2032	Coolant Temperature Sensor Signal	II	LH7
29	0.5	GY	9004	Blunt Cut	II	LH7
30	0.5	BU	410	Engine Coolant Temperature Sensor Signal	II	LH7
31	0.5	BN	3681	Charge Air Cooler Outlet Temperature Sensor Signal	II	-
32	0.5	GN	3683	Charge Air Cooler Inlet Temperature Sensor Signal	II	-
33	0.5	GY	37	Engine Metal Temperature Sensor Signal	II	LH7
34	0.5	BN	25	Charge Indicator Control	II	-
35	0.5	WH/BK	5931	Variable Nozzle Turbo Solenoid Low Signal	II	LH7
36	0.5	GY/BU	5930	Variable Nozzle Turbo Solenoid High Signal	II	LH7
37	0.5	GY	9005	Blunt Cut	II	LH7
38	0.5	BN/YE	2161	Fuel Rail Pressure Sensor 2 Signal	II	-
39	0.5	GY	9006	Blunt Cut	II	LH7
40	0.5	GY/BU	5300	Camshaft Position Intake Sensor Control 1	II	LH7
41	0.5	YE/VT	5275	Camshaft Position Intake Sensor 1	II	LH7
42	0.5	BK/GN	5301	Camshaft Position Intake Sensor Low Reference 1	II	LH7
43	0.5	BN/RD	2701	Throttle Position Sensor 5V Reference	II	-
44	0.5	BU/WH	3630	Throttle Position Sensor (SENT1) Signal	II	LH7
45	0.5	BK/BN	2752	Throttle Position Sensor Low Reference	II	-
46	0.5	GY	9007	Blunt Cut	II	LH7
47	0.5	GY	9008	Blunt Cut	II	LH7
48	0.5	BK/BU	6813	Coolant Temperature Sensor 2 Low Reference	II	-
49	0.5	GY	9009	Blunt Cut	II	LH7
50	0.5	BK/BN	2761	Coolant Temperature Sensor Low Reference	II	-
51	0.5	YE/BU	3680	Charge Air Cooler Outlet Temperature Sensor Low Reference	II	LH7
52	0.5	YE/BK	3682	Charge Air Cooler Inlet Temperature Sensor Low Reference	II	LH7
53	0.5	GY	3721	Engine Metal Temperature Low Reference	II	LH7
54	0.5	GN/GY	7316	Variable Swirl Valve PWM Control Signal	II	LH7
55	0.5	GY	9010	Blunt Cut	II	LH7
56	0.5	GY	9011	Blunt Cut	II	LH7
57	0.5	BK/BN	2753	Exhaust Gas Recirculation Sensor Low Reference	II	-
58	0.5	BN/WH	5763	Exhaust Gas Recirculation Valve Sensor Signal	II	-
59	0.5	BU/RD	5047	Exhaust Gas Recirculation 5V Reference 1	II	LH7
60	0.5	GY	9012	Blunt Cut	II	LH7
61	0.5	GY	9013	Blunt Cut	II	LH7
62	0.5	GY	9014	Blunt Cut	II	LH7
63	0.5	GY	9015	Blunt Cut	II	LH7
64	0.5	GY	9016	Blunt Cut	II	LH7
65	0.5	GY	9017	Blunt Cut	II	LH7
66	0.5	GY/VT	7368	Variable Swirl and Actuator Position Signal	II	LH7
67	0.5	GY	23	Generator Field Duty Cycle Signal	II	-
68	0.5	GY	9018	Blunt Cut	II	LH7
69	0.5	BK/GN	2919	Fuel Rail Pressure Sensor Low Reference	II	LH7
70	0.5	VT/BK	5746	Exhaust Gas Recirculation Valve Motor Low Signal	II	-
71	0.5	WH/VT	5764	Exhaust Gas Recirculation Valve Motor High Signal	II	LH7
72	0.5	GY	9019	Blunt Cut	II	LH7
73	0.5	GY	9020	Blunt Cut	II	LH7
74	0.5	BU/WH	3608	High Speed Mass Air Flow Sensor Control	II	-
75	0.5	BU	179	Oil Pump Command Signal	II	LH7
76	0.5	BK/YE	2834	Fuel Rail Pressure Solenoid Low Reference	II	LH7
77	0.5	GY	9021	Blunt Cut	II	LH7
78	0.5	GY	9022	Blunt Cut	II	LH7
79	0.5	GY	9023	Blunt Cut	II	LH7
80	0.5	BK/GN	469	Manifold Absolute Pressure Sensor Low Reference	II	LH7
81	0.5	GN/WH	432	Manifold Absolute Pressure Sensor Signal	II	LH7
82	0.5	GY/RD	2704	Manifold Absolute Pressure Sensor 5V Reference	II	-
83	0.5	VT/BU	6270	Crankshaft 60X Sensor 5V Reference	II	LH7
84	0.5	GN	6271	Crankshaft 60X Sensor Signal	II	LH7
85	0.5	BK/VT	6272	Crankshaft 60X Sensor Low Reference	II	-
86	0.5	BN/GN	1174	Oil Level Switch Signal	II	-
87	0.5	GY	3045	Variable Swirl Actuator Diagnostic Signal	II	LH7
88	0.5	BU/WH	2918	Fuel Rail Pressure Sensor Signal	II	LH7
89	0.5	BN/RD	2917	Fuel Rail Pressure Sensor 5V Reference	II	-
90	0.5	BN/WH	582	Throttle Actuator Control Close	II	-
91	0.5	YE	581	Throttle Actuator Control Open	II	LH7
92	0.35 0.5	YE/VT GY	4325 4325	Starter Pinion Solenoid Relay Control Starter Pinion Solenoid Relay Control	II II	KL9+LH7 LWW-KL9
93	0.75	GN/VT	3920	Piston Cooling Jet Valve Control	II	LH7
94	0.5	YE/BU	3231	Exhaust Gas Recirculation Cooler Bypass Solenoid Control	II	LH7
95	0.5	GY/BU	3230	Exhaust Gas Recirculation Cooler Bypass Solenoid Control	II	-
96	0.5	BU/WH	2530	Fuel Rail Pressure Solenoid Control	II	LH7
