K173 Transmission Range Control Module (LH7+EPH)

WARNING: This page is about a different car, the 2018 GMC Terrain and 2018 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

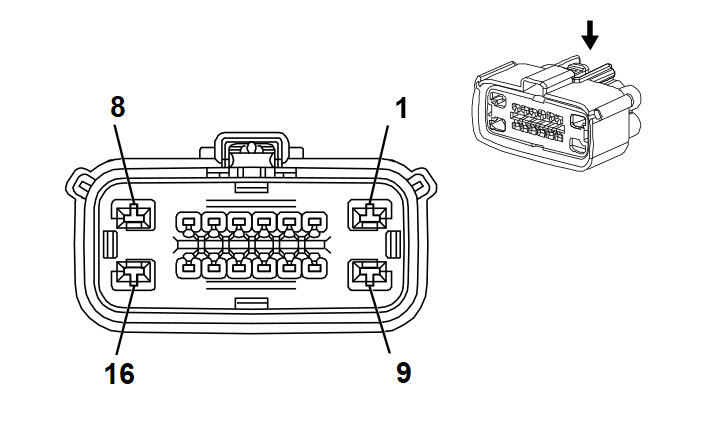

GM3684497

Connector Part Information

Harness Type: Body
OEM Connector: 13599854
Service Connector: 19352906
Description: 16-Way F 1.5, 2.8 Series, Sealed (BK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	13505803	J-35616-35 (VT)	J-38125-12A	Not Available	Not Available	Not Available	Not Available
II	13576377	J-35616-35 (VT)	J-38125-12A	1326030-8	Lear 17	A	4
III	13578813	J-35616-14 (GN)	J-38125-557	Not Available	Not Available	Not Available	Not Available
IV	19300432	J-35616-2A (GY)	J-38125-217	Not Available	Not Available	Not Available	Not Available

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	0.35	VT/BU	5293	Powertrain Main Relay Fused Supply 4	I	MHG+EPH
2	0.35	VT/WH	239	Run/Crank Ignition 1 Voltage	III	MHG+EPH
3	0.35	VT/YE	5985	Accessory Wakeup Serial Data	III	MHG+EPH
4	0.35	WH	2501	High Speed GMLAN Serial Data (-) 1	IV	EPH+LH7
5	0.35	BU	2500	High Speed GMLAN Serial Data (+) 1	IV	EPH+LH7
6	0.35	WH	7494	High Speed GMLAN Serial Data (-) 3	IV	EPH+LH7
7	0.35	BU/BK	7493	High Speed GMLAN Serial Data (+) 3	IV	EPH+LH7
8	1.5	BK	1450	Ground	II	MHG+EPH
9 - 10	-	-	-	Not Occupied	-	-
11	0.35	GN/VT	4621	Local Interconnect Network Serial Data Bus 21	IV	MHG+EPH
12	0.35 0.35	WH WH	2501 2501	High Speed GMLAN Serial Data (-) 1 High Speed GMLAN Serial Data (-) 1	IV IV	EPH+LH7+UEU/UHX EPH+LH7-UEU-UHX
13	0.35 0.35	BU BU	2500 2500	High Speed GMLAN Serial Data (+) 1 High Speed GMLAN Serial Data (+) 1	IV IV	EPH+LH7+UEU/UHX EPH+LH7-UEU-UHX
14	0.35	WH	7494	High Speed GMLAN Serial Data (-) 3	IV	EPH+LH7
15	0.35	BU/BK	7493	High Speed GMLAN Serial Data (+) 3	IV	EPH+LH7
16	1.5	RD/GY	2140	Battery Positive Voltage	II	EPH+MHG
