M35D Window Motor Module - Driver
WARNING: This page is about a different car, the 2018 GMC Terrain and 2018 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
|
|

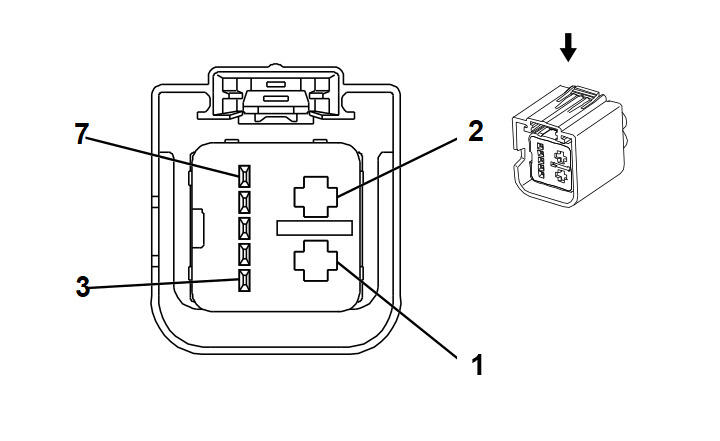

Connector Part Information
- Harness Type: Driver Door
- OEM Connector: 13590001
- Service Connector: Service by Harness - See Part Catalog
- Description: 7-Way F 0.64, 2.8 Kaizen Timer Series, Sealed (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-4A (PU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
J-35616-64B (LT BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
2.5 |
BK |
1550 |
Ground |
I |
AXG |
| 2 |
2.5 |
RD/BN |
3640 |
Battery Positive Voltage |
I |
AXG |
| 3 |
0.35 |
GN/WH |
3379 |
Power Window Switch Driver Up Signal |
II |
AXG |
| 4 |
0.35 |
GN/YE |
6134 |
Local Interconnect Network Serial Data Bus 3 |
II |
AXG |
| 5 |
0.35 |
GN |
3381 |
Power Window Switch Driver Express Signal |
II |
AXG |
| 6 |
0.35 |
GY |
745 |
Left Front Door Ajar Switch Signal |
II |
AXG |
| 7 |
0.35 |
GY |
3380 |
Power Window Switch Driver Down Signal |
II |
AXG |
