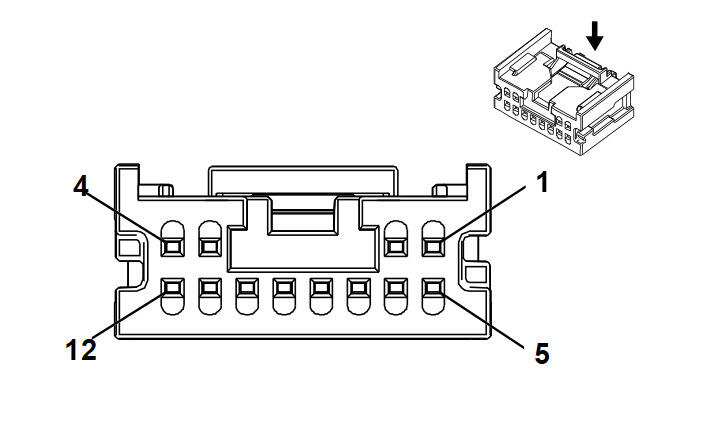

P17 Info Display Module X1 (IOB)
WARNING: This page is about a different car, the 2018 GMC Terrain and 2018 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 13507121
- Service Connector: 13507121
- Description: 12-Way F Mini 50 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
19333221 |
EL-35616-58 (BK) |
J-38125-553 |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
BU/GN |
2813 |
Radio Display Backlight Dimming Control |
I |
IOB |
| 2 |
0.35 |
WH |
2811 |
Radio Display Diagnostic Signal |
I |
IOB |
| 3 |
0.35 |
BU/RD |
2807 |
Radio Keypad Voltage Reference |
I |
IOB |
| 4 |
0.35 |
GN/BK |
2805 |
Radio Keypad Ground Return |
I |
IOB |
| 5 |
0.35 |
BN |
2814 |
Radio Display Low Voltage Differential Signaling Lock Signal |
I |
IOB |
| 6 |
0.35 |
GY/VT |
2812 |
Radio Display Low Voltage Differential Signaling Error Signal |
I |
IOB |
| 7 |
0.35 |
GY/BU |
2803 |
Radio Display Touch Interrupt Request Signal |
I |
IOB |
| 8 |
0.35 |
BK/GN |
2804 |
Radio Display Backlight Low Reference |
I |
IOB |
| 9 |
0.35 |
BK |
1750 |
Ground |
I |
IOB |
| 10 |
0.35 |
BK |
1750 |
Ground |
I |
IOB |
| 11 |
0.35 |
BK/YE |
2806 |
Radio Keypad Low Reference |
I |
IOB |
| 12 |
0.35 |
BU/GY |
2808 |
Radio Keypad Dimming Control |
I |
IOB |
