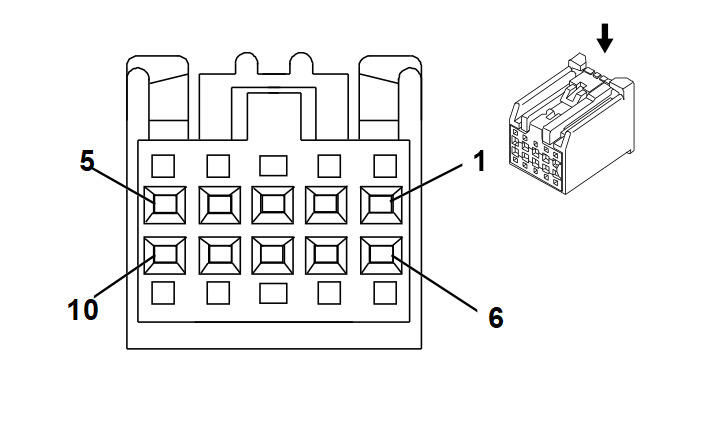

P17 Info Display Module X1 (IOS/IOT/IOU/IO5/IO6)
WARNING: This page is about a different car, the 2018 GMC Terrain and 2018 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 13577390
- Service Connector: 13577390
- Description: 10-Way F 0.64 Kaizen Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13575742 |
J-35616-64B (LT BU) |
J-38125-215A |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
RD/BU |
2540 |
Battery Positive Voltage |
I |
- |
| 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
0.35 |
GY/GN |
1102 |
Low Speed GMLAN Serial Data #2 |
I |
- |
| 4 |
- |
- |
- |
Not Occupied |
- |
- |
| 5 |
0.35 |
GN/BU |
7532 |
Local Interconnect Network Serial Data Bus 10 |
I |
- |
| 6 - 7 |
- |
- |
- |
Not Occupied |
- |
- |
| 8 |
0.35 |
GN/WH |
7527 |
Local Interconnect Network Serial Data Bus 5 |
I |
- |
| 9 |
- |
- |
- |
Not Occupied |
- |
- |
| 10 |
0.35 |
BK |
1750 |
Ground |
I |
- |
