T1 Accessory DC/AC Power Inverter Module (KI7)
WARNING: This page is about a different car, the 2018 GMC Terrain and 2018 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
|
|

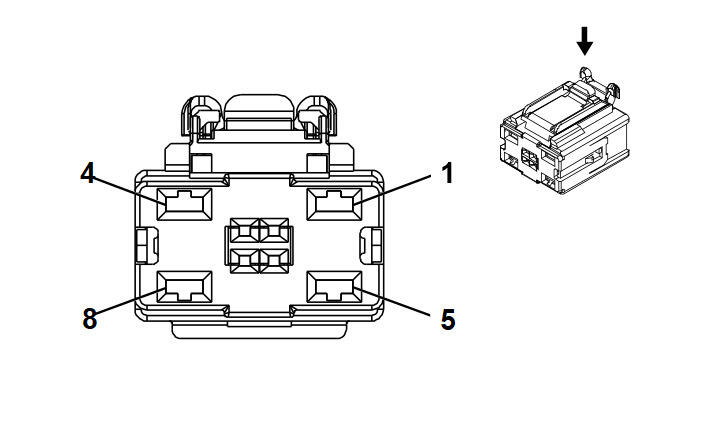

Connector Part Information
- Harness Type: Floor Console
- OEM Connector: 13591333
- Service Connector: Service by Harness - See Part Catalog
- Description: 8-Way F 0.64, 2.8 Series (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-35 (VT) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
J-35616-64B (LT BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.75 |
BU |
6865 |
230 V AC Phase B |
I |
KI7 |
| 2 - 3 |
- |
- |
- |
Not Occupied |
- |
- |
| 4 |
1.5 |
RD/WH |
2040 |
Battery Positive Voltage |
I |
KI7 |
| 5 |
0.75 |
BN |
686 |
230 V AC Phase A |
I |
KI7 |
| 6 |
0.35 |
BU/BN |
6807 |
DC To AC Inverter Control |
II |
KI7 |
| 7 |
- |
- |
- |
Not Occupied |
- |
- |
| 8 |
1.5 |
BK |
2250 |
Ground |
I |
KI7 |
