Right Front Of The Engine (LTG)
WARNING: This page is about a different car, the 2018 GMC Terrain and 2018 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

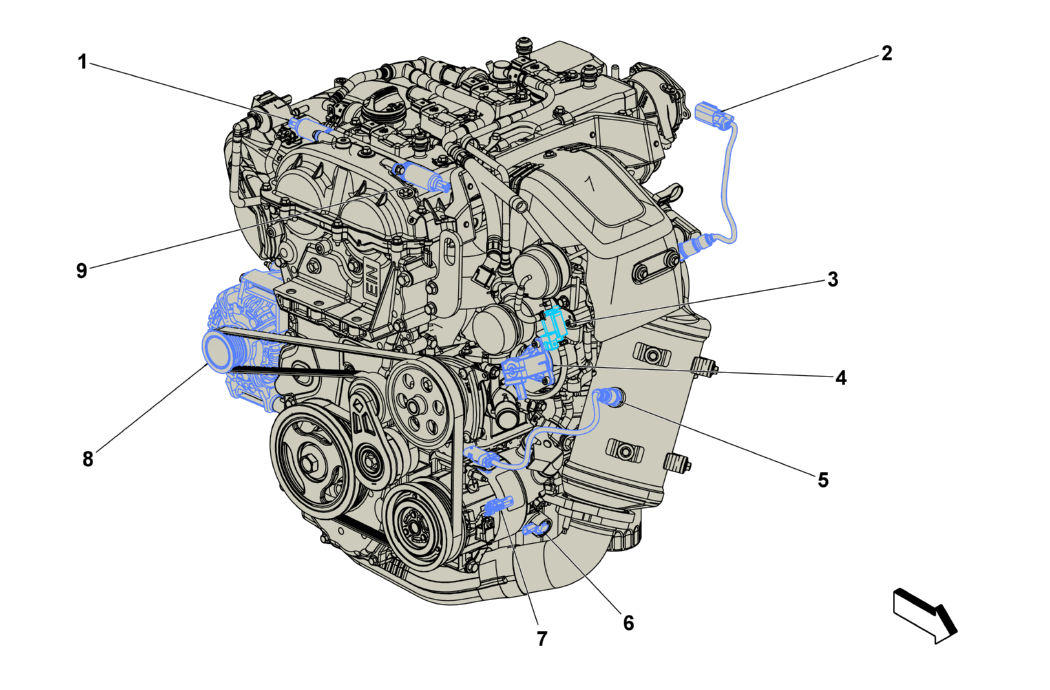

Right Front Of The Engine (LTG)
| Items |
|---|
| 1. Q6F Camshaft Position Actuator Solenoid Valve - Intake (LTG/LYX) Q6F Camshaft Position Actuator Solenoid Valve - Intake (LTG/LYX) |
| 2. B52A Heated Oxygen Sensor 1 (LTG/LYX) B52A Heated Oxygen Sensor 1 (LTG) |
| 3. Q42 Turbocharger Wastegate Solenoid Valve (LTG/LYX) Q42 Turbocharger Wastegate Solenoid Valve (LTG) |
| 4. Q40 Turbocharger Bypass Solenoid Valve (LTG/LYX) Q40 Turbocharger Bypass Solenoid Valve (LTG/LYX) |
| 5. B52B Heated Oxygen Sensor 2 B52B Heated Oxygen Sensor 2 (LTG) |
| 6. Q46 A/C Compressor Solenoid Valve Q46 A/C Compressor Solenoid Valve |
| 7. Q2 A/C Compressor Clutch Q2 A/C Compressor Clutch |
| 8. G13 Generator G13 Generator X1G13 Generator X2 (LH7/LTG) |
| 9. Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LTG/LYX) Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LTG) |
