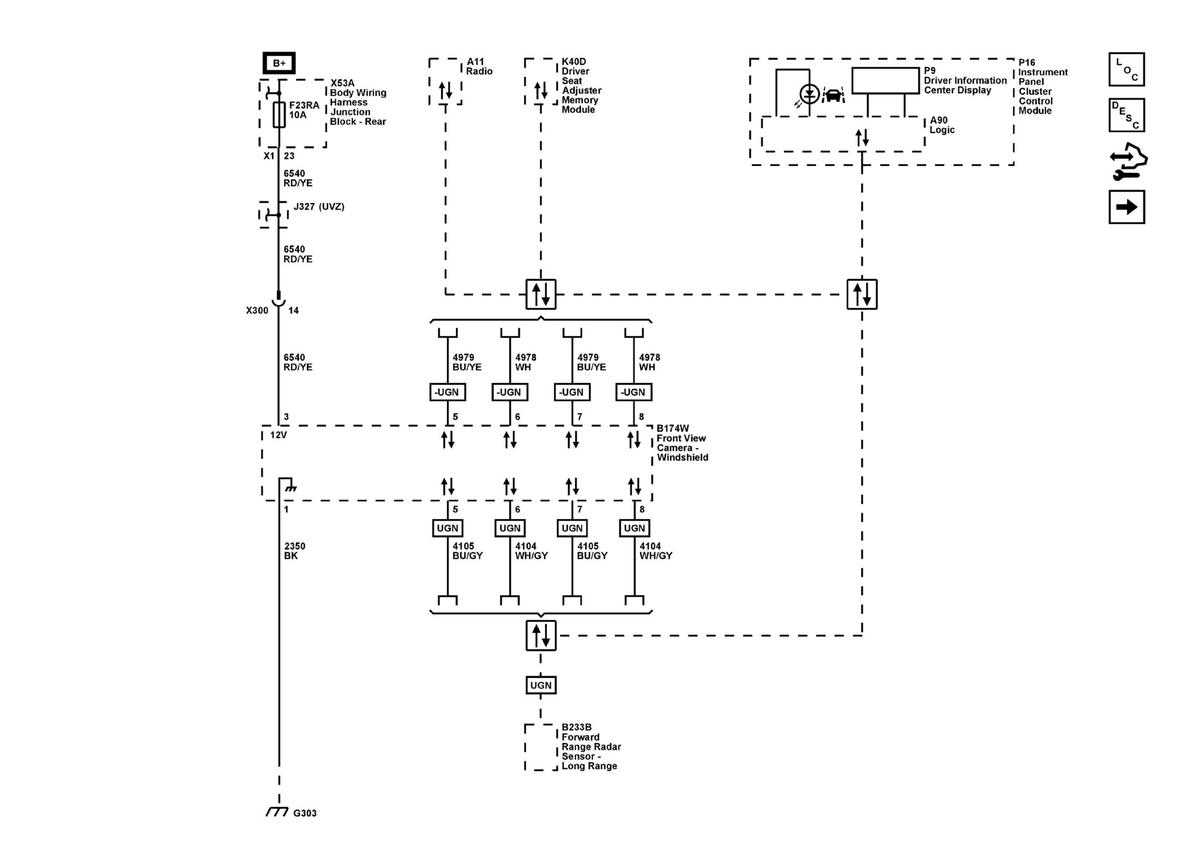

Lane Keep Assist and Forward Collision - Module Power, Ground, and Serial Data (UEU)
WARNING:
This page is about a different car, the 2021 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY
