A26 Heater and Air Conditioning User Interface Control - Front
WARNING: This page is about a different car, the 2021 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

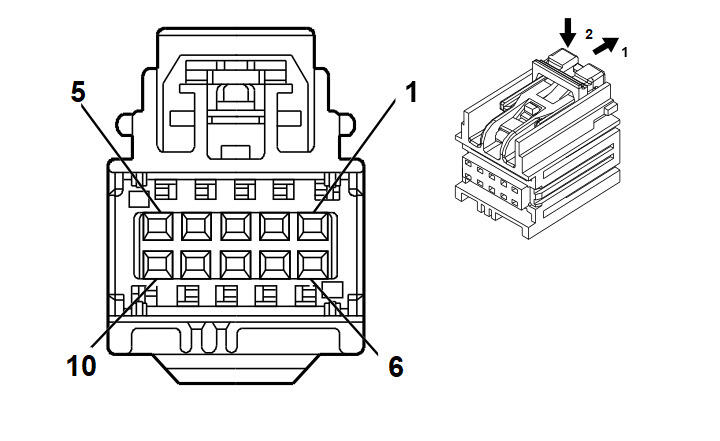

Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool |
|---|---|---|---|
| I | 19300629 | J-35616-64B (LT BU) | J-38125-215A |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 0.5 | RD / BU | 3240 | Battery Positive Voltage | I | - |
| 2 | - | - | - | Not Occupied | - | - |
| 3 | 0.5 | BU / WH | 4985 | AUTOSAR CAN Bus [+] 5 Serial Data | I | - |
| 4 | 0.35 0.5 |
BU / WH BU / WH |
4985 4985 |
AUTOSAR CAN Bus [+] 5 Serial Data AUTOSAR CAN Bus [+] 5 Serial Data |
I I |
-K4C+M5N UQT |
| 5 | - | - | - | Not Occupied | - | - |
| 6 | 0.35 | GY / GN | 4636 | HVAC System Enable Signal | I | - |
| 7 | - | - | - | Not Occupied | - | - |
| 8 | 0.5 | BU / YE | 4984 | AUTOSAR CAN Bus [-] 5 Serial Data | I | - |
| 9 | 0.35 0.5 |
BU / YE BU / YE |
4984 4984 |
AUTOSAR CAN Bus [-] 5 Serial Data AUTOSAR CAN Bus [-] 5 Serial Data |
I I |
-K4C+M5N UQT |
| 10 | 0.5 | BK / WH | 1451 | Signal Ground | I | - |
