B14C Automatic Transmission Input Speed Sensor
WARNING: This page is about a different car, the 2021 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

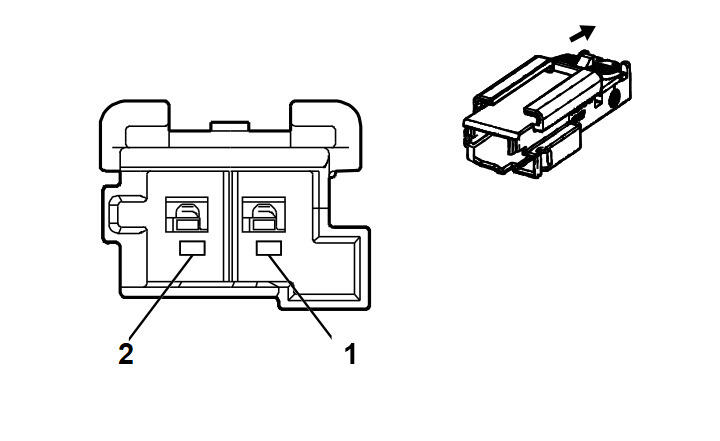

Connector Part Information
- Harness Type: Transmisson Case
- OEM Connector: 2272160-3
- Service Connector: Service by Harness - See Part Catalog
- Description: 2 -Way M 1.2 MCON Series (GN)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not Available |
No Tool Required |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
WH / VT |
6353 |
Input Speed Signal |
I |
- |
| 2 |
- |
BU |
4171 |
Transmission Input Shaft Speed Sensor Circuit 9V Reference |
I |
- |
