K36 Restraints Control Module X2

WARNING: This page is about a different car, the 2021 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

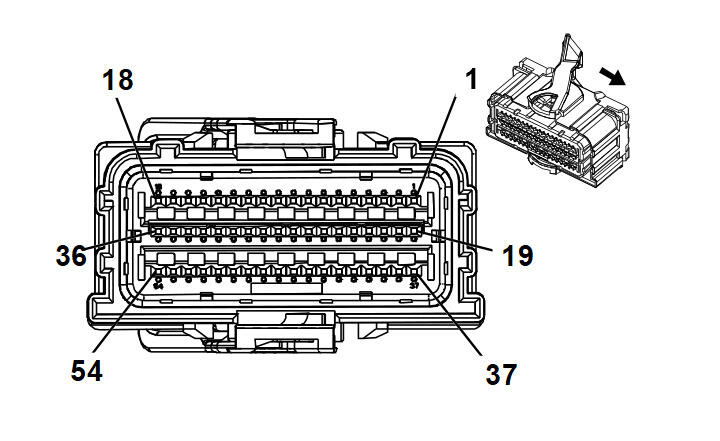

GM2817420Courtesy of GENERAL MOTORS COMPANY
Connector Part Information
  • Harness Type: Body
  • OEM Connector: 13871539
  • Service Connector: 19303770
  • Description: 54 -Way F 0.64 Series, Sealed (YE)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool
I 19328872 J-35616-64B (LT BU) J-38125-11A
Pin Size Color Circuit Function Terminal Type ID Option
1 0.5 OG / WH 3477 Driver Seat Belt Retractor Pretensioner High Control I -
2 0.5 VT / OG 3478 Driver Seat Belt Retractor Pretensioner Low Control I -
3 0.5 WH / OG 3476 Passenger Seat Belt Retractor Pretensioner Low Control I -
4 0.5 OG / GN 3475 Passenger Seat Belt Retractor Pretensioner High Control I -
5 0.5 OG / YE 3481 Driver Seat Belt Anchor Pretensioner High Control I -
6 0.5 VT / OG 3482 Driver Seat Belt Anchor Pretensioner Low Control I -
7 0.5 GY / OG 3480 Passenger Seat Belt Anchor Pretensioner Low Control I -
8 0.5 OG / BN 3479 Passenger Seat Belt Anchor Pretensioner High Control I -
9 - 10 - - - Not Occupied - -
11 0.5 GN / OG 7014 Left Rear Roof Rail Air Bag Low Control I -
12 0.5 OG / YE 7013 Left Rear Roof Rail Air Bag High Control I -
13 0.5 OG / BU 7015 Right Rear Roof Rail Air Bag High Control I -
14 0.5 GY / OG 7016 Right Rear Roof Rail Air Bag Low Control I -
15 - 18 - - - Not Occupied - -
19 0.35 OG / BU 4962 Driver Seat Back Air Bag High Control I -
20 0.5 BK / OG 4963 Driver Seat Back Air Bag Low Control I -
21 0.5 BU / OG 4957 Passenger Seat Back Air Bag Low Control I -
22 0.5 OG / GY 4956 Passenger Seat Back Air Bag High Control I -
23 0.35 OG / YE 354 Left Front Impact Discriminating Sensor Signal I -
24 0.35 BK / OG 5045 Left Front Impact Discriminating Sensor Low Reference I -
25 0.35 BK / OG 6629 Right Front Side Impact Sensor Low Reference I -
26 0.35 BN / OG 2134 Right Front Side Impact Sensor Signal I -
27 0.35 OG / BU 6620 Left Middle Side Impact Sensor Signal I -
28 0.35 BK / OG 6621 Left Middle Side Impact Sensor Low Reference I -
29 0.35 BK / OG 5600 Right Front Impact Discriminating Sensor Low Reference I -
30 0.35 OG / GN 1409 Right Front Impact Discriminating Sensor Signal I -
31 - 41 - - - Not Occupied - -
42 0.35 BK / OG 1363 Driver Seat Belt Switch Low Reference I -
43 0.35 OG / BN 238 Driver Seat Belt Switch Signal I -
44 0.5 OG / WH 2653 Passenger Seat Belt Sensor Signal I -
45 - 46 - - - Not Occupied - -
47 0.35 BK / OG 6628 Left Front Side Impact Sensor Low Reference I -
48 0.35 OG / GN 2132 Left Front Side Impact Sensor Signal I -
49 0.35 OG / VT 6624 Right Middle Side Impact Sensor Signal I -
50 0.35 BK / OG 6625 Right Middle Side Impact Sensor Low Reference I -
51 - 54 - - - Not Occupied - -
