K157 Video Processing Module X4
WARNING: This page is about a different car, the 2021 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

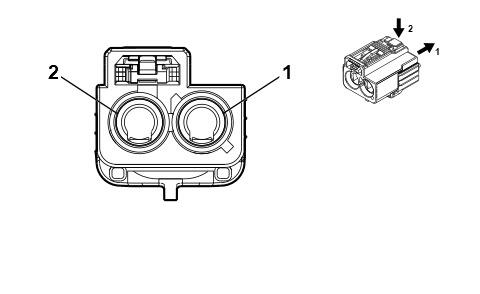

Connector Part Information
- Harness Type: Body COAX
- OEM Connector: 13516430
- Service Connector: Service by Cable Assembly - See Part Catalog
- Description: 2 -Way F Coax Type (BG)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
No Tool Required |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
LVDS |
- |
Low Voltage Differential Signaling Cable |
I |
- |
| 2 |
- |
- |
- |
Not Occupied |
- |
- |
